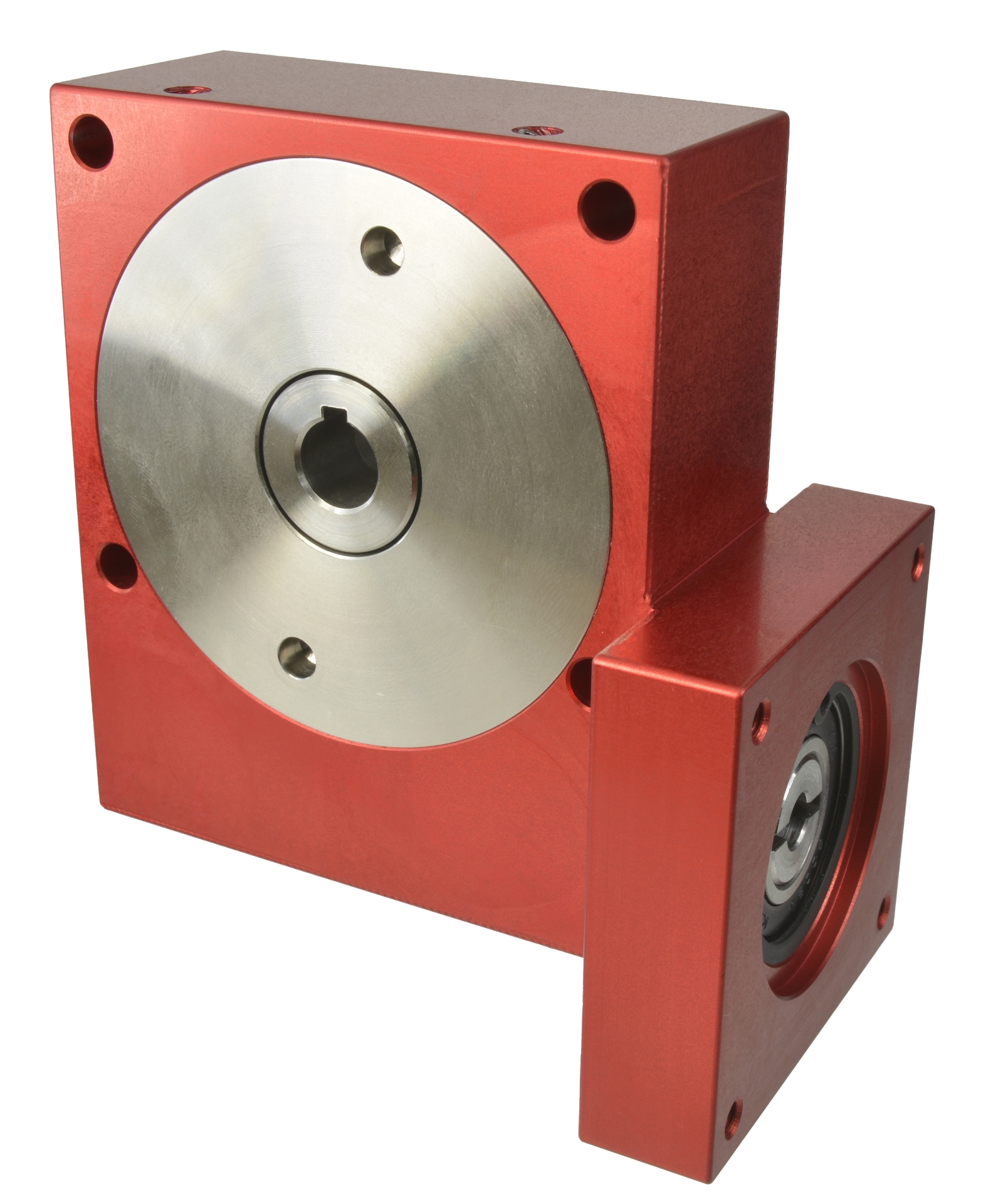

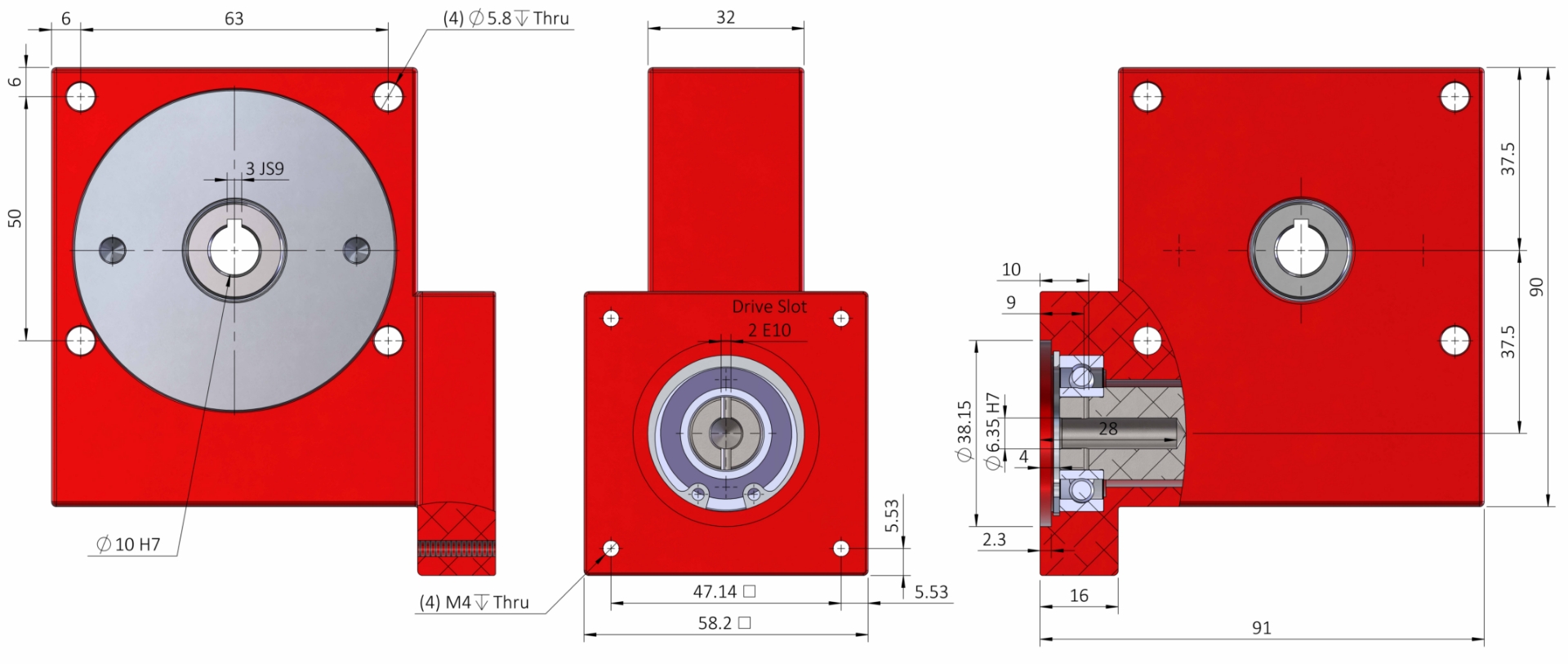

PF40NM 18Nm NEMA 23 37.5mm-Centres
Precision Worm Wheel Reducers
Manufactured by Ondrives in the UK
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| PF40-10NM | 10:1 | 37.50 | 18 | 7.10 | ≤0.5° |
| PF40-12NM | 12:1 | 37.50 | 18 | 7.50 | ≤0.5° |
| PF40-15NM | 15:1 | 37.50 | 18 | 8.00 | ≤0.5° |
| PF40-20NM | 20:1 | 37.50 | 18 | 8.20 | ≤0.5° |
| PF40-30NM | 30:1 | 37.50 | 18 | 9.00 | ≤0.5° |
| PF40-60NM | 60:1 | 37.50 | 18 | 10.00 | ≤0.5° |
| PF40-120NM | 120:1 | 37.50 | 12 | 8.70 | ≤0.5° |
| PF40-10ANM | 10:1 | 37.50 | 18 | 7.10 | ≤0.13° |
| PF40-12ANM | 12:1 | 37.50 | 18 | 7.50 | ≤0.13° |
| PF40-15ANM | 15:1 | 37.50 | 18 | 8.00 | ≤0.13° |
| PF40-20ANM | 20:1 | 37.50 | 18 | 8.20 | ≤0.13° |
| PF40-30ANM | 30:1 | 37.50 | 18 | 9.00 | ≤0.13° |
| PF40-60ANM | 60:1 | 37.50 | 18 | 10.00 | ≤0.13° |
| PF40-120ANM | 120:1 | 37.50 | 12 | 8.70 | ≤0.13° |
| PF40-10ARNM | 10:1 | 37.50 | 18 | 7.10 | ≤0.06° |
| PF40-12ARNM | 12:1 | 37.50 | 18 | 7.50 | ≤0.06° |
| PF40-15ARNM | 15:1 | 37.50 | 18 | 8.00 | ≤0.06° |
| PF40-20ARNM | 20:1 | 37.50 | 18 | 8.20 | ≤0.06° |
| PF40-30ARNM | 30:1 | 37.50 | 18 | 9.00 | ≤0.06° |
| PF40-60ARNM | 60:1 | 37.50 | 18 | 10.00 | ≤0.06° |
| PF40-120ARNM | 120:1 | 37.50 | 12 | 8.70 | ≤0.06° |
