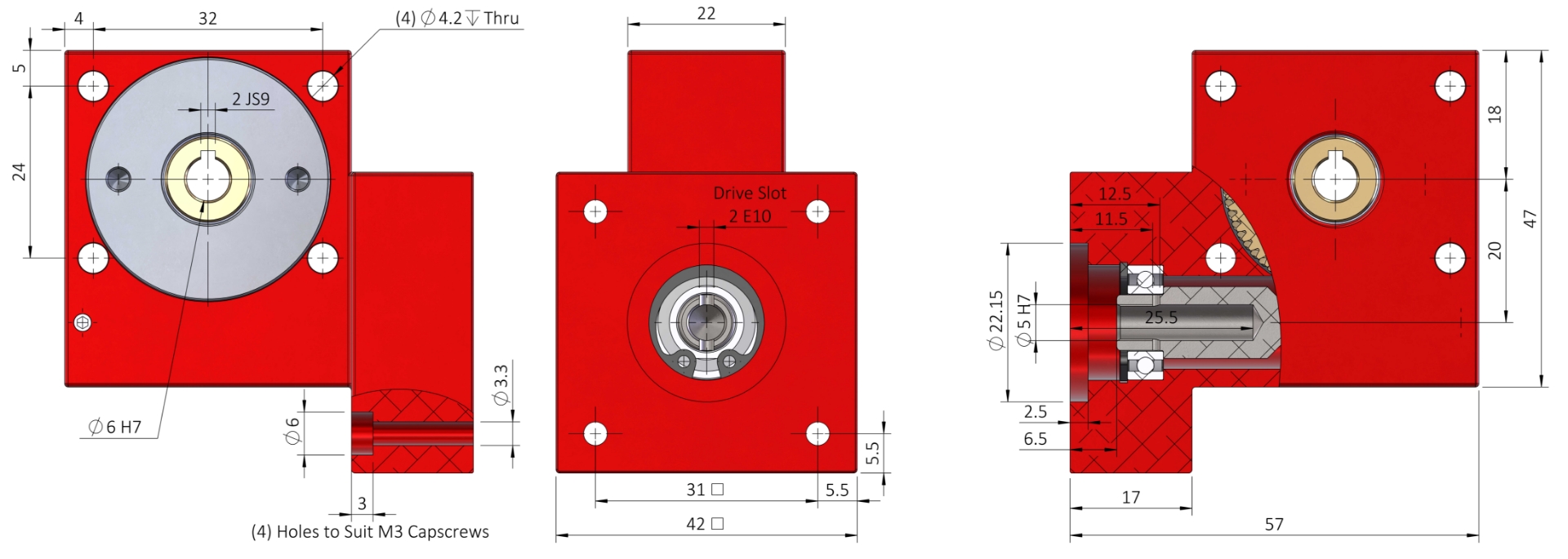

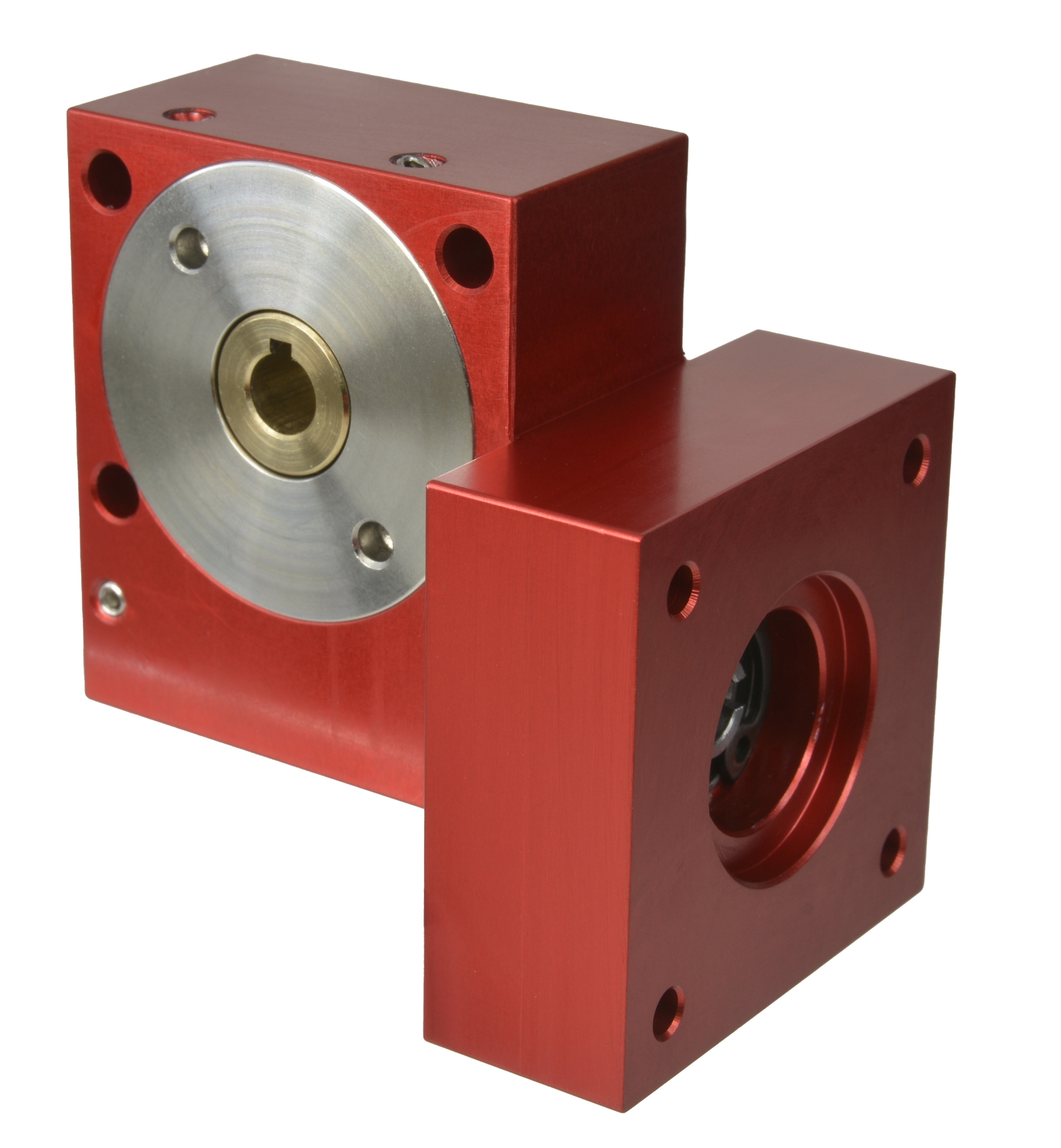

PF20NM 5Nm NEMA 17 20mm-Centres
Precision Worm Wheel Reducers
Manufactured by Ondrives in the UK
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| PF20-10NM | 10:1 | 20.00 | 5 | 2.10 | ≤0.5° |
| PF20-12NM | 12:1 | 20.00 | 5 | 2.30 | ≤0.5° |
| PF20-15NM | 15:1 | 20.00 | 5 | 2.30 | ≤0.5° |
| PF20-20NM | 20:1 | 20.00 | 5 | 2.50 | ≤0.5° |
| PF20-30NM | 30:1 | 20.00 | 5 | 2.70 | ≤0.5° |
| PF20-60NM | 60:1 | 20.00 | 5 | 2.90 | ≤0.5° |
| PF20-120NM | 120:1 | 20.00 | 3 | 1.70 | ≤0.5° |
| PF20-10ANM | 10:1 | 20.00 | 5 | 2.10 | ≤0.13° |
| PF20-12ANM | 12:1 | 20.00 | 5 | 2.30 | ≤0.13° |
| PF20-15ANM | 15:1 | 20.00 | 5 | 2.30 | ≤0.13° |
| PF20-20ANM | 20:1 | 20.00 | 5 | 2.50 | ≤0.13° |
| PF20-30ANM | 30:1 | 20.00 | 5 | 2.70 | ≤0.13° |
| PF20-60ANM | 60:1 | 20.00 | 5 | 2.90 | ≤0.13° |
| PF20-120ANM | 120:1 | 20.00 | 3 | 1.70 | ≤0.13° |
| PF20-10ARNM | 10:1 | 20.00 | 5 | 2.10 | ≤0.06° |
| PF20-12ARNM | 12:1 | 20.00 | 5 | 2.30 | ≤0.06° |
| PF20-15ARNM | 15:1 | 20.00 | 5 | 2.30 | ≤0.06° |
| PF20-20ARNM | 20:1 | 20.00 | 5 | 2.50 | ≤0.06° |
| PF20-30ARNM | 30:1 | 20.00 | 5 | 2.70 | ≤0.06° |
| PF20-60ARNM | 60:1 | 20.00 | 5 | 2.90 | ≤0.06° |
| PF20-120ARNM | 120:1 | 20.00 | 3 | 1.70 | ≤0.06° |
