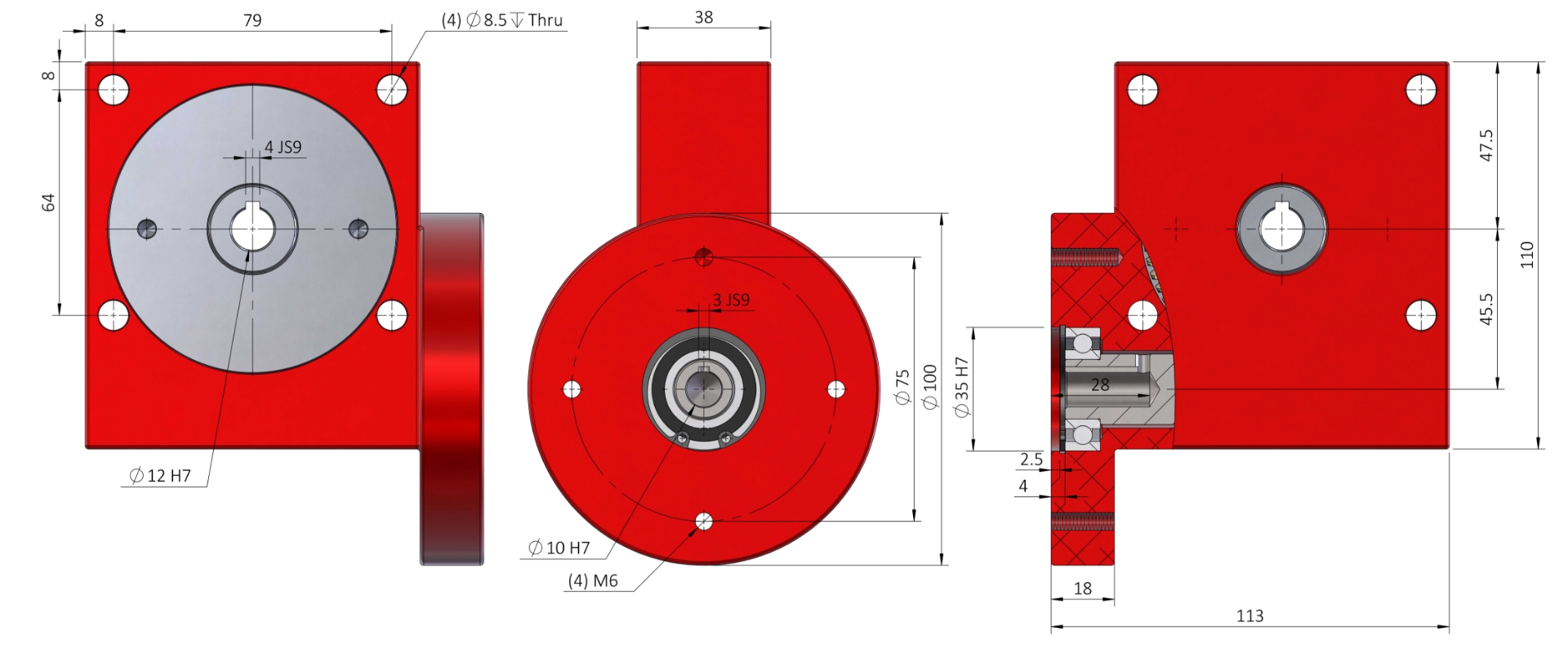

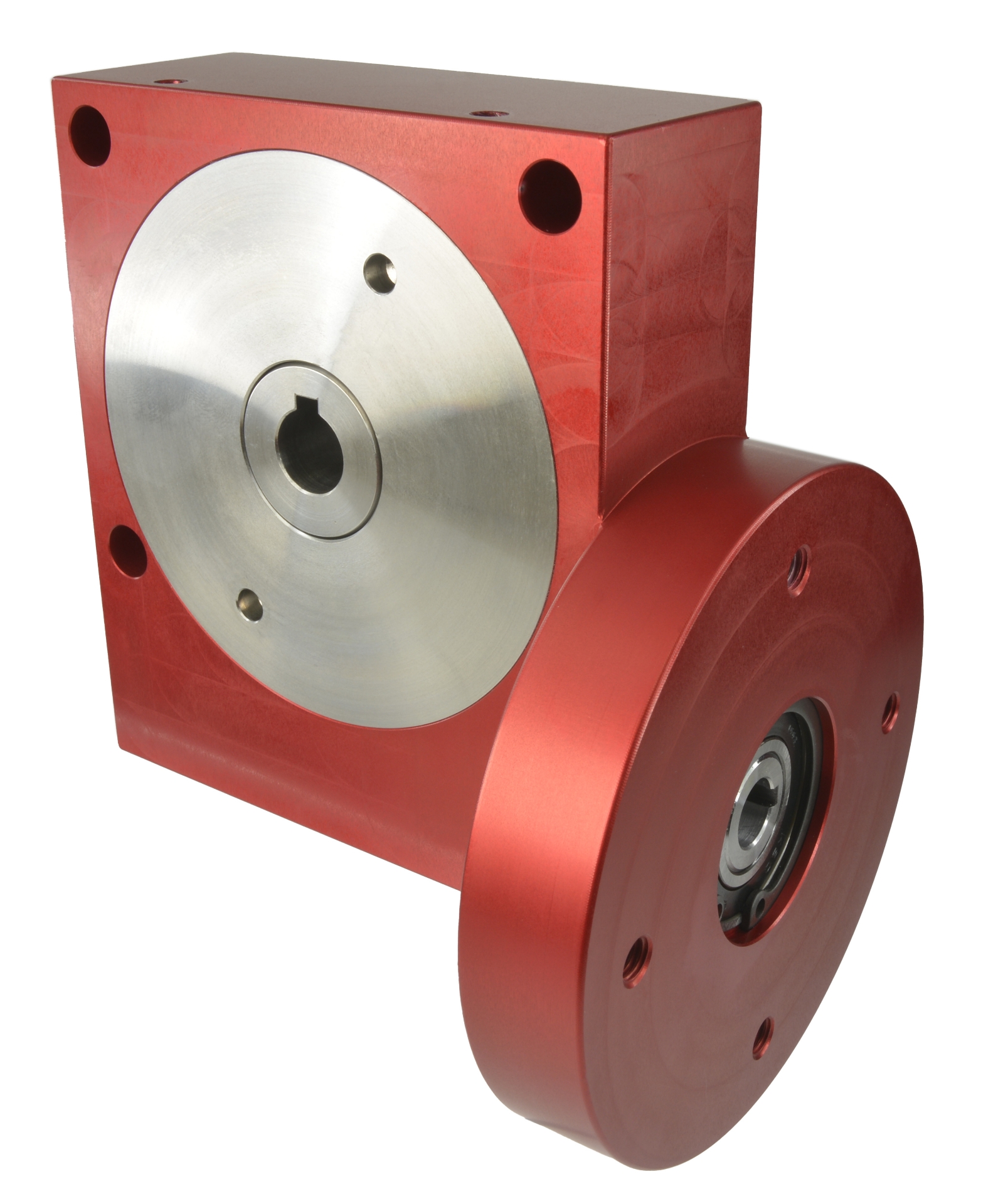

PF45 40Nm 45.5mm-Centres
Precision Worm Wheel Reducers
Manufactured by Ondrives in the UK
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| PF45-10 | 10:1 | 45.50 | 40 | 14.70 | ≤0.5° |
| PF45-12 | 12:1 | 45.50 | 40 | 15.20 | ≤0.5° |
| PF45-15 | 15:1 | 45.50 | 40 | 16.20 | ≤0.5° |
| PF45-20 | 20:1 | 45.50 | 40 | 17.10 | ≤0.5° |
| PF45-30 | 30:1 | 45.50 | 40 | 18.10 | ≤0.5° |
| PF45-60 | 60:1 | 45.50 | 40 | 20.60 | ≤0.5° |
| PF45-120 | 120:1 | 45.50 | 23 | 14.30 | ≤0.5° |
| PF45-10A | 10:1 | 45.50 | 40 | 14.70 | ≤0.13° |
| PF45-12A | 12:1 | 45.50 | 40 | 15.20 | ≤0.13° |
| PF45-15A | 15:1 | 45.50 | 40 | 16.20 | ≤0.13° |
| PF45-20A | 20:1 | 45.50 | 40 | 17.10 | ≤0.13° |
| PF45-30A | 30:1 | 45.50 | 40 | 18.10 | ≤0.13° |
| PF45-60A | 60:1 | 45.50 | 40 | 20.60 | ≤0.13° |
| PF45-120A | 120:1 | 45.50 | 23 | 14.30 | ≤0.13° |
| PF45-10AR | 10:1 | 45.50 | 40 | 14.70 | ≤0.06° |
| PF45-12AR | 12:1 | 45.50 | 40 | 15.20 | ≤0.06° |
| PF45-15AR | 15:1 | 45.50 | 40 | 16.20 | ≤0.06° |
| PF45-20AR | 20:1 | 45.50 | 40 | 17.10 | ≤0.06° |
| PF45-30AR | 30:1 | 45.50 | 40 | 18.10 | ≤0.06° |
| PF45-60AR | 60:1 | 45.50 | 40 | 20.60 | ≤0.06° |
| PF45-120AR | 120:1 | 45.50 | 23 | 14.30 | ≤0.06° |
