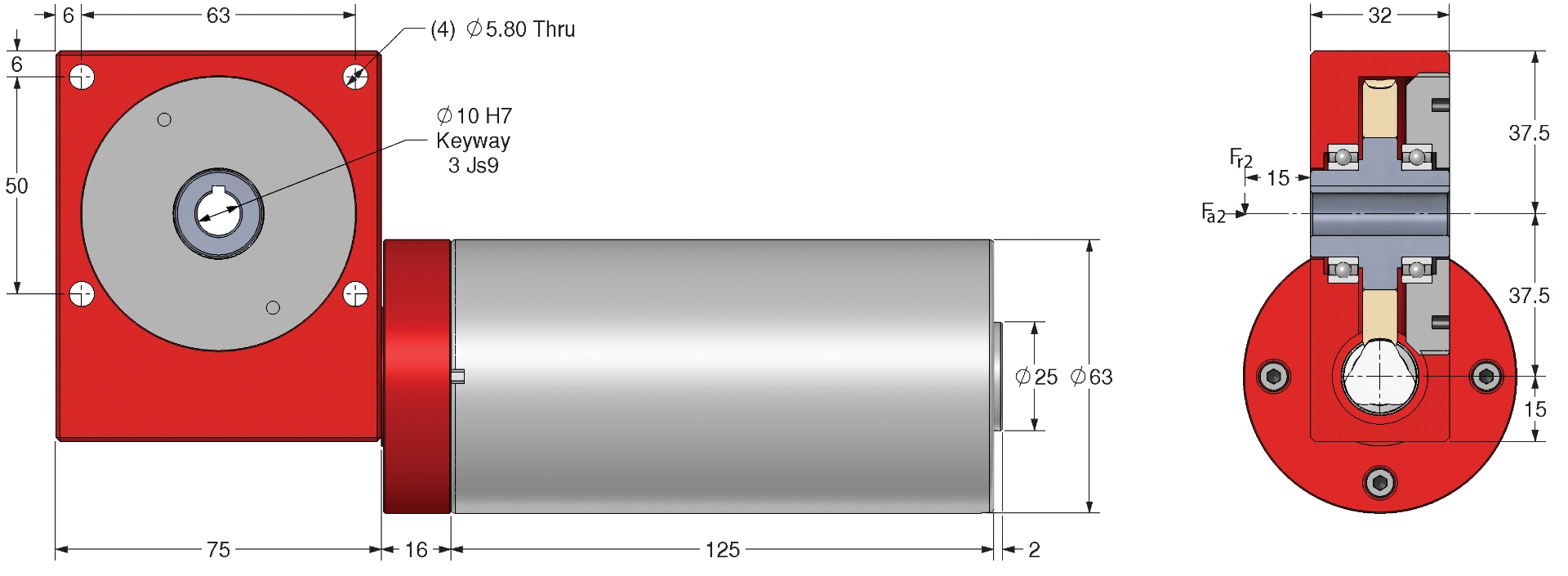

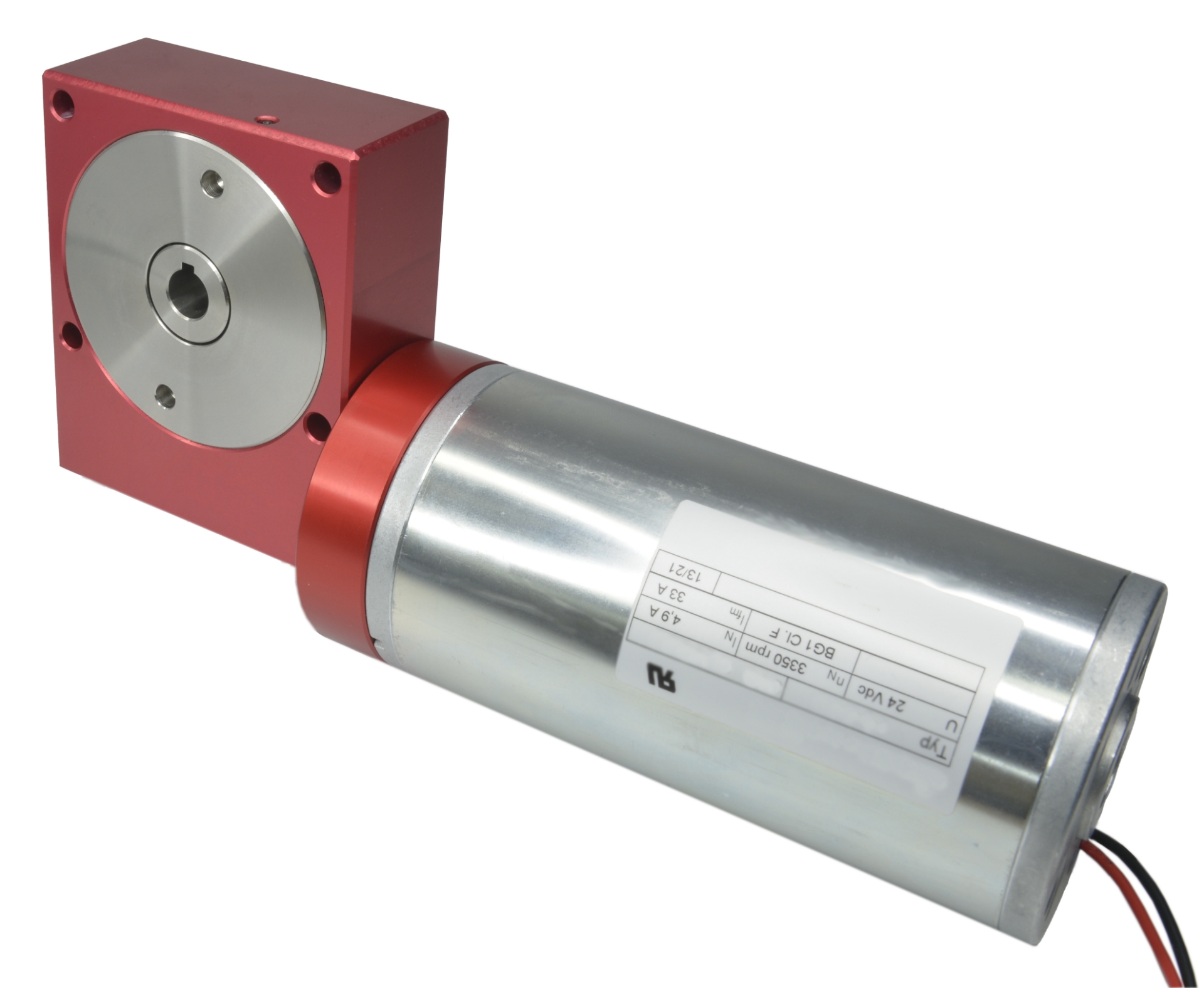

PF40DU 8.5Nm DC Motor 37.5mm Centres
Precision Worm Wheel Reducers
Manufactured by Ondrives in the UK
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Backlash j |
|---|---|---|---|
| PF40DU-10 | 10:1 | 37.50 | ≤0.5° |
| PF40DU-12 | 12:1 | 37.50 | ≤0.5° |
| PF40DU-15 | 15:1 | 37.50 | ≤0.5° |
| PF40DU-20 | 20:1 | 37.50 | ≤0.5° |
| PF40DU-30 | 30:1 | 37.50 | ≤0.5° |
| PF40DU-60 | 60:1 | 37.50 | ≤0.5° |
| PF40DU-120 | 120:1 | 37.50 | ≤0.5° |
| PF40DU-10A | 10:1 | 37.50 | ≤0.13° |
| PF40DU-12A | 12:1 | 37.50 | ≤0.13° |
| PF40DU-15A | 15:1 | 37.50 | ≤0.13° |
| PF40DU-20A | 20:1 | 37.50 | ≤0.13° |
| PF40DU-30A | 30:1 | 37.50 | ≤0.13° |
| PF40DU-60A | 60:1 | 37.50 | ≤0.13° |
| PF40DU-120A | 120:1 | 37.50 | ≤0.13° |
