PF30DU-15

Ondrives Precision Gears and Gearboxes Part number PF30DU-15

PF30DU-15

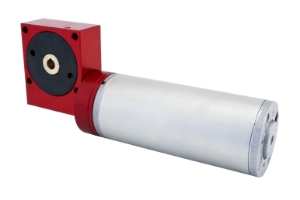

PF30 precision worm gear reducer fitted with 24v DC motor, ≤30' backlash, 2.5Nm, ratio 15:1
Ondrives Precision Gears and Gearboxes Part number PF30DU-15 Ondrives Precision Gears and Gearboxes Part number PF30DU-15

Product specifications

Centre Dist. [a]30.00
Gear Ratio [i=]15:1
Output Backlash j≤0.5°
Nm Output at 1550 Rpm Input2.5
Efficiency n1 1000 r/min [ηz]86%
Nominal Output Rpm100
Rpm at 12V DC1500
DC MotorDUN53x58-24
Mass [kg]1.16
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1

Product specifications

Centre Dist. [a]30.00
Gear Ratio [i=]15:1
Output Backlash j≤0.5°
Nm Output at 1550 Rpm Input2.5
Efficiency n1 1000 r/min [ηz]86%
Nominal Output Rpm100
Rpm at 12V DC1500
DC MotorDUN53x58-24
Mass [kg]1.16
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1
