PF30DU-20A

Ondrives Precision Gears and Gearboxes Part number PF30DU-20A

PF30DU-20A

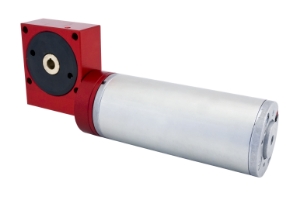

PF30 precision worm gear reducer fitted with 24v DC motor, ≤8' backlash, 3.4Nm, ratio 20:1
Ondrives Precision Gears and Gearboxes Part number PF30DU-20A Ondrives Precision Gears and Gearboxes Part number PF30DU-20A

Product specifications

Centre Dist. [a]30.00
Gear Ratio [i=]20:1
Output Backlash j≤0.13°
Efficiency n1 1000 r/min [ηz]84%
Nm Output at 1550 Rpm Input3.4
Nominal Output Rpm75
Rpm at 12V DC1500
DC MotorDUN53x58-24
Mass [kg]1.16
Axial Backlash (mm)<0.15
Radial Backlash (mm)<0.15
Max. Axial Load (N)130
Max. Radial Load at 20mm (N)90
Max. Shaft Push Pressure (N)200
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1

Product specifications

Centre Dist. [a]30.00
Gear Ratio [i=]20:1
Output Backlash j≤0.13°
Efficiency n1 1000 r/min [ηz]84%
Nm Output at 1550 Rpm Input3.4
Nominal Output Rpm75
Rpm at 12V DC1500
DC MotorDUN53x58-24
Mass [kg]1.16
Axial Backlash (mm)<0.15
Radial Backlash (mm)<0.15
Max. Axial Load (N)130
Max. Radial Load at 20mm (N)90
Max. Shaft Push Pressure (N)200
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1
