PF30DU-60

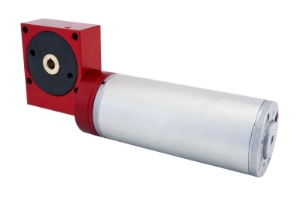

Ondrives Precision Gears and Gearboxes Part number PF30DU-60

PF30DU-60

PF30 precision worm gear reducer fitted with 24v DC motor, <30' backlash, 4.5Nm, ratio 60:1
Ondrives Precision Gears and Gearboxes Part number PF30DU-60 Ondrives Precision Gears and Gearboxes Part number PF30DU-60

Product specifications

Centre Dist. [a] 30.00
Gear Ratio [i=] 60:1
Output Backlash j ≤0.5°
Nm Output at 1550 Rpm Input 4.5
Efficiency n1 1000 r/min [ηz] 70%
Nominal Output Rpm 25
Rpm at 12V DC 1500
DC Motor DUN53x58-24
Mass [kg] 1.16
Working Temp Range -20°C ~ +85°C
Max. Housing Temperature (°C) 85
Starting Voltage (V) 1

Product specifications

Centre Dist. [a] 30.00
Gear Ratio [i=] 60:1
Output Backlash j ≤0.5°
Nm Output at 1550 Rpm Input 4.5
Efficiency n1 1000 r/min [ηz] 70%
Nominal Output Rpm 25
Rpm at 12V DC 1500
DC Motor DUN53x58-24
Mass [kg] 1.16
Working Temp Range -20°C ~ +85°C
Max. Housing Temperature (°C) 85
Starting Voltage (V) 1
