PF40-30ARNM

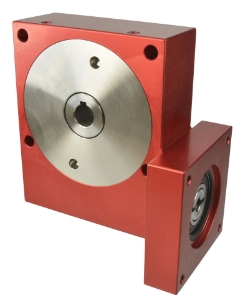

Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes

PF40-30ARNM

Precision worm gear reducer, ≤4' backlash, Nema 23 flanged input, 10mm output bore & 6.35mm input bore, 6.40Nm-17.80Nm output torque, ratio 30:1
Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox bore input with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox bore input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Product specifications

Centre Dist. [a]37.50
Gear Ratio [i=]30:1
Output Torque T₂max [Nm]18
Output Torque T₂n [Nm]9.00
Output Backlash j≤0.06°
Reflected Inertia at Input (kg•m²)3.32 x 10-6
Efficiency n1 1000 r/min [ηz]76%
Mass [kg]1.15
Max. Output Radial Load Fr2 N300
Max. Output Axial Load Fa2 N200
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Centre Dist. [a]37.50
Gear Ratio [i=]30:1
Output Torque T₂max [Nm]18
Output Torque T₂n [Nm]9.00
Output Backlash j≤0.06°
Reflected Inertia at Input (kg•m²)3.32 x 10-6
Efficiency n1 1000 r/min [ηz]76%
Mass [kg]1.15
Max. Output Radial Load Fr2 N300
Max. Output Axial Load Fa2 N200
Lubrication GreaseShell Gadus S5 V42P 2.5
