PF40DU-30

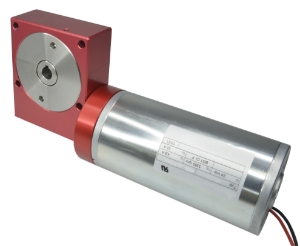

Ondrives Precision Gears and Gearboxes Part number PF40DU-30

PF40DU-30

PF40 precision worm gear reducer fitted with 24v DC motor, ≤30' backlash, 8.0Nm, ratio 30:1
Ondrives Precision Gears and Gearboxes Part number PF40DU-30 Ondrives Precision Gears and Gearboxes Part number PF40DU-30 Ondrives Precision Gears and Gearboxes Part number PF40DU-30

Product specifications

Centre Dist. [a]37.50
Gear Ratio [i=]30:1
Output Backlash j≤0.5°
Nm Output at 1550 Rpm Input8.0
Efficiency n1 1000 r/min [ηz]76%
Nominal Output Rpm55
Rpm at 12V DC1675
DC MotorDUN63x55-24
Mass [kg]1.7
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1

Product specifications

Centre Dist. [a]37.50
Gear Ratio [i=]30:1
Output Backlash j≤0.5°
Nm Output at 1550 Rpm Input8.0
Efficiency n1 1000 r/min [ηz]76%
Nominal Output Rpm55
Rpm at 12V DC1675
DC MotorDUN63x55-24
Mass [kg]1.7
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1
