PF30DU-10

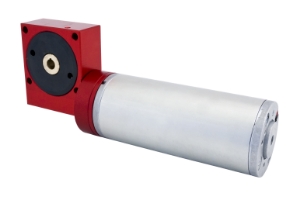

Ondrives Precision Gears and Gearboxes Part number PF30DU-10

PF30DU-10

PF30 precision worm gear reducer fitted with 24v DC motor, ≤30' backlash, 1.7Nm, ratio 10:1
Ondrives Precision Gears and Gearboxes Part number PF30DU-10 Ondrives Precision Gears and Gearboxes Part number PF30DU-10

Product specifications

Centre Dist. [a]30.00
Gear Ratio [i=]10:1
Output Backlash j≤0.5°
Efficiency n1 1000 r/min [ηz]90%
Rpm at 12V DC1500
DC MotorDUN53x58-24
Mass [kg]1.16
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1

Product specifications

Centre Dist. [a]30.00
Gear Ratio [i=]10:1
Output Backlash j≤0.5°
Efficiency n1 1000 r/min [ηz]90%
Rpm at 12V DC1500
DC MotorDUN53x58-24
Mass [kg]1.16
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1
