PHG0.5-210L

Ondrives Precision Gears and Gearboxes Part number PHG0.5-210L

PHG0.5-210L

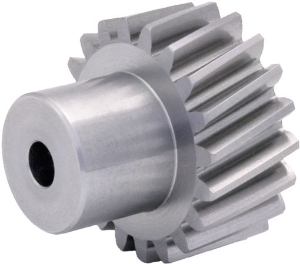

0.5 Module Steel 817M40T (28HRC) 15 deg. Left Hand Helix Precision Parallel Helical Gear 20° PA - Quality Grade 7e DIN 3961/58405 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PHG0.5-210L Ondrives Precision Gears and Gearboxes Part number PHG0.5-210L

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN584057e
Gear Tooth TypeHelical
Helix DirectionLeft Hand
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]210
Torque T₂ [Nm] n1 100 r/min12.77
Ref. Diameter [d]108.70
Bore Diameter [di] H716
Tip Diameter [da]109.70
Hub Diameter [BD]65
Backlash (mm) jt.i (min)0.066
Backlash (mm) jt.e (max)0.139
Inertia [I] kgm²6.73 x 10-4
Mass [kg]0.6

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN584057e
Gear Tooth TypeHelical
Helix DirectionLeft Hand
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]210
Torque T₂ [Nm] n1 100 r/min12.77
Ref. Diameter [d]108.70
Bore Diameter [di] H716
Tip Diameter [da]109.70
Hub Diameter [BD]65
Backlash (mm) jt.i (min)0.066
Backlash (mm) jt.e (max)0.139
Inertia [I] kgm²6.73 x 10-4
Mass [kg]0.6
