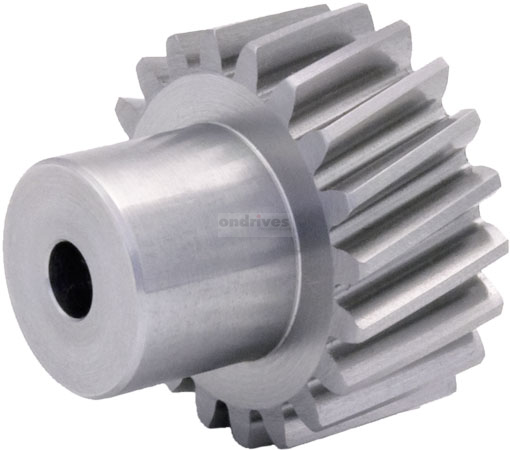

    Precision Parallel Helical Gears

    Ondrives precision helical gears are manufactured in our UK factory to quality grade 7e25 DIN 3961/3967 (AGMA Q10).
    Helical gears have teeth at an angle normally called the helix angle and can be macro/micro geometry optomised for applications using the latest Kisssoft design software to give smoother and high torques.
    Tooth sizes available from 0.5Mod - 12Mod.
    We manufacture to customers drawings and specifications with full traceability, first article inspection reports (F.A.I.R), and inspection reports if required.

    See more on our Spur Gears and Helical Gears at:Information of spur and helical gears
    And try our Gear Calculator at: Ondrives On-line gear calculator

    View as Grid List
    Sort by
    Display per page
    Helical Gears Precision from Ondrives UK precision gear and gearbox manufacturer

    PHG0.5-100L

    PHG0.5-100L
    £33.88
    0.5 Module Steel 817M40T (28HRC) 15 deg. Left Hand Helix Precision Parallel Helical Gear 20 deg. PA - Quality Grade 7e DIN 3961/58405 (AGMA Q10)
    Helical Gears Precision from Ondrives UK precision gear and gearbox manufacturer

    PHG0.5-100LH

    PHG0.5-100LH
    £55.89
    0.5 Module Case Hardened 805M20 (58HRC) 15 deg. Left Hand Helix Precision Parallel Helical Gear 20 deg. PA - Quality Grade 7e DIN 3961/58405 (AGMA Q10)
    Ondrives Precision Gears and Gearboxes Part number  PHG0.5-100R

    PHG0.5-100R

    PHG0.5-100R
    £33.88
    0.5 Module Steel 817M40T (28HRC) 15 deg. Right Hand Helix Precision Parallel Helical Gear 20 deg. PA - Quality Grade 7e DIN 3961/58405 (AGMA Q10)
    Ondrives Precision Gears and Gearboxes Part number  PHG0.5-100RH

    PHG0.5-100RH

    PHG0.5-100RH
    £55.89
    0.5 Module Case Hardened 805M20 (58HRC) 15 deg. Right Hand Helix Precision Parallel Helical Gear 20 deg. PA - Quality Grade 7e DIN 3961/58405 (AGMA Q10)
    Ondrives Precision Gears and Gearboxes Part number  PHG0.5-120L

    PHG0.5-120L

    PHG0.5-120L
    £41.00
    0.5 Module Steel 817M40T (28HRC) 15 deg. Left Hand Helix Precision Parallel Helical Gear 20 deg. PA - Quality Grade 7e DIN 3961/58405 (AGMA Q10)
    Ondrives Precision Gears and Gearboxes Part number  PHG0.5-120LH

    PHG0.5-120LH

    PHG0.5-120LH
    £67.64
    0.5 Module Case Hardened 805M20 (58HRC) 15 deg. Left Hand Helix Precision Parallel Helical Gear 20 deg. PA - Quality Grade 7e DIN 3961/58405 (AGMA Q10)
