PHG0.5-55R

Ondrives Precision Gears and Gearboxes Part number PHG0.5-55R

PHG0.5-55R

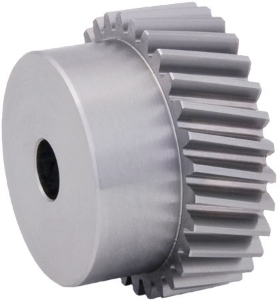

0.5 Module Steel 817M40T (28HRC) 15 deg. Right Hand Helix Precision Parallel Helical Gear 20° PA - Quality Grade 7e DIN 3961/58405 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PHG0.5-55R Ondrives Precision Gears and Gearboxes Part number PHG0.5-55R

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN584057e
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]55
Torque T₂ [Nm] n1 100 r/min2.15
Ref. Diameter [d]28.47
Bore Diameter [di] H76
Tip Diameter [da]29.47
Hub Diameter [BD]25
Backlash (mm) jt.i (min)0.047
Backlash (mm) jt.e (max)0.100
Inertia [I] kgm²5.51 x 10-6
Mass [kg]0.06

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN584057e
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]55
Torque T₂ [Nm] n1 100 r/min2.15
Ref. Diameter [d]28.47
Bore Diameter [di] H76
Tip Diameter [da]29.47
Hub Diameter [BD]25
Backlash (mm) jt.i (min)0.047
Backlash (mm) jt.e (max)0.100
Inertia [I] kgm²5.51 x 10-6
Mass [kg]0.06
