PHG0.5-62RH

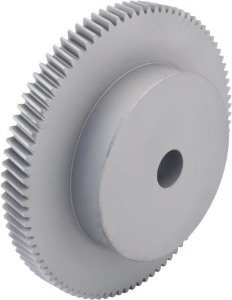

Ondrives Precision Gears and Gearboxes Part number PHG0.5-62RH

PHG0.5-62RH

0.5 Module Case Hardened 805M20 (58HRC) 15 deg. Right Hand Helix Precision Parallel Helical Gear 20° PA - Quality Grade 7e DIN 3961/58405 (ISO 1328)

Ondrives Precision Gears and Gearboxes Part number PHG0.5-62RH

Ondrives Precision Gears and Gearboxes Part number PHG0.5-62RH

Product specifications

Material	805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN58405	7e
Gear Tooth Type	Helical
Helix Direction	Right Hand
Normal Module mn	0.5
Pressure Angle	20°
No. of Teeth [z]	62
Torque T₂ [Nm] n1 100 r/min	5.32
Ref. Diameter [d]	32.09
Bore Diameter [di] H7	6
Tip Diameter [da]	33.09
Hub Diameter [BD]	25
Backlash (mm) jt.i (min)	0.046
Backlash (mm) jt.e (max)	0.102
Inertia [I] kgm²	7.05 x 10-6
Mass [kg]	0.067

Product specifications

Material	805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN58405	7e
Gear Tooth Type	Helical
Helix Direction	Right Hand
Normal Module mn	0.5
Pressure Angle	20°
No. of Teeth [z]	62
Torque T₂ [Nm] n1 100 r/min	5.32
Ref. Diameter [d]	32.09
Bore Diameter [di] H7	6
Tip Diameter [da]	33.09
Hub Diameter [BD]	25
Backlash (mm) jt.i (min)	0.046
Backlash (mm) jt.e (max)	0.102
Inertia [I] kgm²	7.05 x 10-6
Mass [kg]	0.067
