PHG0.5-72L

Ondrives Precision Gears and Gearboxes Part number PHG0.5-72L

PHG0.5-72L

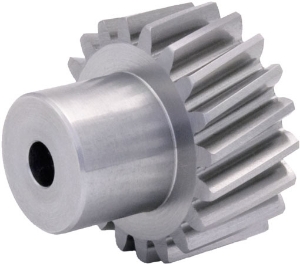

0.5 Module Steel 817M40T (28HRC) 15 deg. Left Hand Helix Precision Parallel Helical Gear 20° PA - Quality Grade 7e DIN 3961/58405 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PHG0.5-72L Ondrives Precision Gears and Gearboxes Part number PHG0.5-72L

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN584057e
Gear Tooth TypeHelical
Helix DirectionLeft Hand
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]72
Torque T₂ [Nm] n1 100 r/min3.2
Ref. Diameter [d]37.27
Bore Diameter [di] H76
Tip Diameter [da]38.27
Hub Diameter [BD]25
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.102
Inertia [I] kgm²1.04 x 10-5
Mass [kg]0.078

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN584057e
Gear Tooth TypeHelical
Helix DirectionLeft Hand
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]72
Torque T₂ [Nm] n1 100 r/min3.2
Ref. Diameter [d]37.27
Bore Diameter [di] H76
Tip Diameter [da]38.27
Hub Diameter [BD]25
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.102
Inertia [I] kgm²1.04 x 10-5
Mass [kg]0.078
