PHG1.0-50R

Ondrives Precision Gears and Gearboxes Part number PHG1.0-50R

PHG1.0-50R

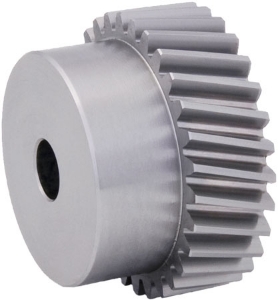

1.0 Module Steel 817M40T (28HRC) 15 deg. Right Hand Helix Precision Parallel Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PHG1.0-50R Ondrives Precision Gears and Gearboxes Part number PHG1.0-50R

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn1
Pressure Angle20°
No. of Teeth [z]50
Torque T₂ [Nm] n1 100 r/min13.6
Ref. Diameter [d]51.76
Bore Diameter [di] H710
Tip Diameter [da]53.76
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.072
Backlash (mm) jt.e (max)0.177
Inertia [I] kgm²7.84 x 10-5
Mass [kg]0.269

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn1
Pressure Angle20°
No. of Teeth [z]50
Torque T₂ [Nm] n1 100 r/min13.6
Ref. Diameter [d]51.76
Bore Diameter [di] H710
Tip Diameter [da]53.76
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.072
Backlash (mm) jt.e (max)0.177
Inertia [I] kgm²7.84 x 10-5
Mass [kg]0.269
