PHG1.0-82RH

Ondrives Precision Gears and Gearboxes Part number PHG1.0-82RH

PHG1.0-82RH

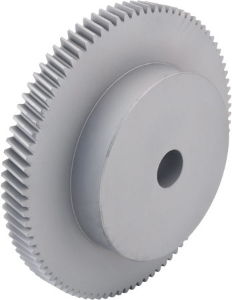

1.0 Module Case Hardened 805M20 (58HRC) 15 deg. Right Hand Helix Precision Parallel Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PHG1.0-82RH Ondrives Precision Gears and Gearboxes Part number PHG1.0-82RH

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn1
Pressure Angle20°
No. of Teeth [z]82
Torque T₂ [Nm] n1 100 r/min59.04
Ref. Diameter [d]84.89
Bore Diameter [di] H712
Tip Diameter [da]86.89
Hub Diameter [BD]60
Backlash (mm) jt.i (min)0.070
Backlash (mm) jt.e (max)0.179
Inertia [I] kgm²5.17 x 10-4
Mass [kg]0.689

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn1
Pressure Angle20°
No. of Teeth [z]82
Torque T₂ [Nm] n1 100 r/min59.04
Ref. Diameter [d]84.89
Bore Diameter [di] H712
Tip Diameter [da]86.89
Hub Diameter [BD]60
Backlash (mm) jt.i (min)0.070
Backlash (mm) jt.e (max)0.179
Inertia [I] kgm²5.17 x 10-4
Mass [kg]0.689
