PHG1.5-15R

Ondrives Precision Gears and Gearboxes Part number PHG1.5-15R

PHG1.5-15R

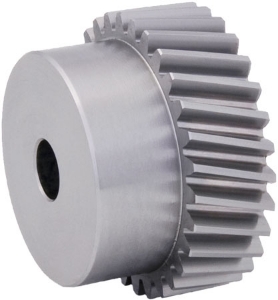

1.5 Module Steel 817M40T (28HRC) 15 deg. Right Hand Helix Precision Parallel Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PHG1.5-15R Ondrives Precision Gears and Gearboxes Part number PHG1.5-15R

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn1.5
Pressure Angle20°
No. of Teeth [z]15
Torque T₂ [Nm] n1 100 r/min4.35
Ref. Diameter [d]23.29
Bore Diameter [di] H76
Tip Diameter [da]26.29
Hub Diameter [BD]19
Backlash (mm) jt.i (min)0.054
Backlash (mm) jt.e (max)0.132
Inertia [I] kgm²5.08 x 10-6
Mass [kg]0.076

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn1.5
Pressure Angle20°
No. of Teeth [z]15
Torque T₂ [Nm] n1 100 r/min4.35
Ref. Diameter [d]23.29
Bore Diameter [di] H76
Tip Diameter [da]26.29
Hub Diameter [BD]19
Backlash (mm) jt.i (min)0.054
Backlash (mm) jt.e (max)0.132
Inertia [I] kgm²5.08 x 10-6
Mass [kg]0.076
