PHG1.5-35L

Helical Gears Precision from Ondrives UK precision gear and gearbox manufacturer

PHG1.5-35L

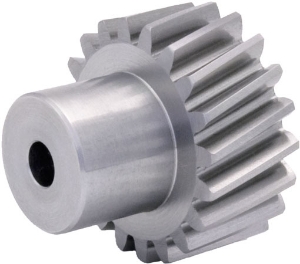

1.5 Module Steel 817M40T (28HRC) 15 deg. Left Hand Helix Precision Parallel Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Helical Gears Precision from Ondrives UK precision gear and gearbox manufacturer Helical Gears Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionLeft Hand
Normal Module mn1.5
Pressure Angle20°
No. of Teeth [z]35
Torque T₂ [Nm] n1 100 r/min18.51
Ref. Diameter [d]54.35
Bore Diameter [di] H710
Tip Diameter [da]57.35
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.072
Backlash (mm) jt.e (max)0.177
Inertia [I] kgm²1.30 x 10-5
Mass [kg]0.4

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionLeft Hand
Normal Module mn1.5
Pressure Angle20°
No. of Teeth [z]35
Torque T₂ [Nm] n1 100 r/min18.51
Ref. Diameter [d]54.35
Bore Diameter [di] H710
Tip Diameter [da]57.35
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.072
Backlash (mm) jt.e (max)0.177
Inertia [I] kgm²1.30 x 10-5
Mass [kg]0.4
