PHG1.5-70R

Ondrives Precision Gears and Gearboxes Part number PHG1.5-70R

PHG1.5-70R

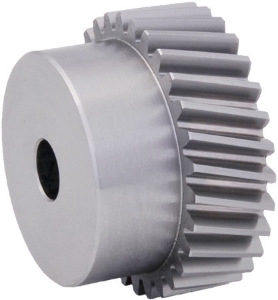

1.5 Module Steel 817M40T (28HRC) 15 deg. Right Hand Helix Precision Parallel Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PHG1.5-70R Ondrives Precision Gears and Gearboxes Part number PHG1.5-70R

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn1.5
Pressure Angle20°
No. of Teeth [z]70
Torque T₂ [Nm] n1 100 r/min67.5
Ref. Diameter [d]108.70
Bore Diameter [di] H716
Tip Diameter [da]111.70
Hub Diameter [BD]85
Backlash (mm) jt.i (min)0.070
Backlash (mm) jt.e (max)0.179
Inertia [I] kgm²2.20 x 10-3
Mass [kg]1.707

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn1.5
Pressure Angle20°
No. of Teeth [z]70
Torque T₂ [Nm] n1 100 r/min67.5
Ref. Diameter [d]108.70
Bore Diameter [di] H716
Tip Diameter [da]111.70
Hub Diameter [BD]85
Backlash (mm) jt.i (min)0.070
Backlash (mm) jt.e (max)0.179
Inertia [I] kgm²2.20 x 10-3
Mass [kg]1.707
