PHG2.0-21R

Ondrives Precision Gears and Gearboxes Part number PHG2.0-21R

PHG2.0-21R

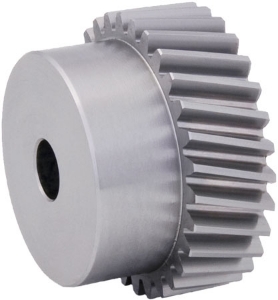

2.0 Module Steel 817M40T (28HRC) 15 deg. Right Hand Helix Precision Parallel Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PHG2.0-21R Ondrives Precision Gears and Gearboxes Part number PHG2.0-21R

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]21
Torque T₂ [Nm] n1 100 r/min17.33
Ref. Diameter [d]43.48
Bore Diameter [di] H712
Tip Diameter [da]47.48
Hub Diameter [BD]35
Backlash (mm) jt.i (min)0.053
Backlash (mm) jt.e (max)0.134
Inertia [I] kgm²7.86 x 10-5
Mass [kg]0.346

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]21
Torque T₂ [Nm] n1 100 r/min17.33
Ref. Diameter [d]43.48
Bore Diameter [di] H712
Tip Diameter [da]47.48
Hub Diameter [BD]35
Backlash (mm) jt.i (min)0.053
Backlash (mm) jt.e (max)0.134
Inertia [I] kgm²7.86 x 10-5
Mass [kg]0.346
