PHG2.0-50RH

Ondrives Precision Gears and Gearboxes Part number PHG2.0-50RH

PHG2.0-50RH

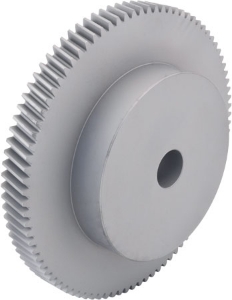

2.0 Module Case Hardened 805M20 (58HRC) 15 deg. Right Hand Helix Precision Parallel Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PHG2.0-50RH Ondrives Precision Gears and Gearboxes Part number PHG2.0-50RH

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]50
Torque T₂ [Nm] n1 100 r/min263.79
Ref. Diameter [d]103.53
Bore Diameter [di] H718
Tip Diameter [da]107.53
Hub Diameter [BD]60
Backlash (mm) jt.i (min)0.070, 0.070
Inertia [I] kgm²1.95 x 10-3
Mass [kg]1.675

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]50
Torque T₂ [Nm] n1 100 r/min263.79
Ref. Diameter [d]103.53
Bore Diameter [di] H718
Tip Diameter [da]107.53
Hub Diameter [BD]60
Backlash (mm) jt.i (min)0.070, 0.070
Inertia [I] kgm²1.95 x 10-3
Mass [kg]1.675
