PHG3.0-16R

Ondrives Precision Gears and Gearboxes Part number PHG3.0-16R

PHG3.0-16R

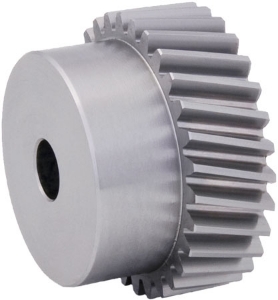

3.0 Module Steel 817M40T (28HRC) 15 deg. Right Hand Helix Precision Parallel Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PHG3.0-16R Ondrives Precision Gears and Gearboxes Part number PHG3.0-16R

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]16
Torque T₂ [Nm] n1 100 r/min32.28
Ref. Diameter [d]49.69
Bore Diameter [di] H714
Tip Diameter [da]55.69
Hub Diameter [BD]38
Backlash (mm) jt.i (min)0.053
Backlash (mm) jt.e (max)0.134
Inertia [I] kgm²1.94 x 10-4
Mass [kg]0.646

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]16
Torque T₂ [Nm] n1 100 r/min32.28
Ref. Diameter [d]49.69
Bore Diameter [di] H714
Tip Diameter [da]55.69
Hub Diameter [BD]38
Backlash (mm) jt.i (min)0.053
Backlash (mm) jt.e (max)0.134
Inertia [I] kgm²1.94 x 10-4
Mass [kg]0.646
