PP60-100

Ondrives Precision Gears and Gearboxes Part number PP60-100

PP60-100

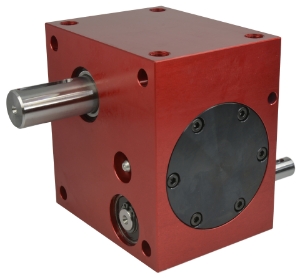

Double reduction worm gear reducer, 12mm input shaft, 20mm output shaft, 38Nm output torque, Ratio 100:1
Ondrives Precision Gears and Gearboxes Part number PP60-100 Ondrives Precision Gears and Gearboxes Part number PP60-100 Ondrives Precision Gears and Gearboxes Part number PP60-100 Ondrives Precision Gears and Gearboxes Part number PP60-100 Ondrives Precision Gears and Gearboxes Part number PP60-100

Product specifications

Gear Ratio [i=]100:1
Output Torque T₂max [Nm]38
Nom Output Torque T₂n [Nm]28
Output Backlash j≤0.92°
Efficiency n1 1000 r/min [ηz]55%
Mass [kg]3.3
Max. Input Radial Load Fr1 N150
Max. Output Radial Load Fr2 N450
Max. Output Axial Load Fa2 N300
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Gear Ratio [i=]100:1
Output Torque T₂max [Nm]38
Nom Output Torque T₂n [Nm]28
Output Backlash j≤0.92°
Efficiency n1 1000 r/min [ηz]55%
Mass [kg]3.3
Max. Input Radial Load Fr1 N150
Max. Output Radial Load Fr2 N450
Max. Output Axial Load Fa2 N300
Lubrication GreaseShell Gadus S5 V42P 2.5
