PW1.0-3HG

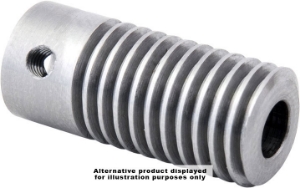

Ondrives Precision Gears and Gearboxes Part number PW1.0-3HG

PW1.0-3HG

1.0 Module Steel 805M20 (58HRC) 3 Start Precision Bore Worm 20° PA - Quality Grade 6e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PW1.0-3HG Ondrives Precision Gears and Gearboxes Part number PW1.0-3HG

Product specifications

Quality DIN 3974 DIN39676e25
Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc
Worm ProfileZi
No. of Starts worm [z1]3
Lead DirectionRight Hand
Axial Module mx1.0
Pressure Angle20°
Gear Tooth TypeWorm Cut

Product specifications

Quality DIN 3974 DIN39676e25
Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc
Worm ProfileZi
No. of Starts worm [z1]3
Lead DirectionRight Hand
Axial Module mx1.0
Pressure Angle20°
Gear Tooth TypeWorm Cut
