PWG0.5-150-2PK

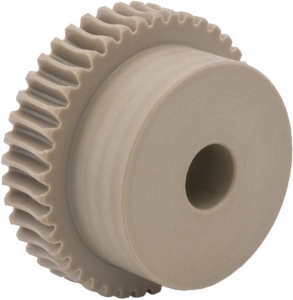

Ondrives Precision Gears and Gearboxes Part number PWG0.5-150-2PK

PWG0.5-150-2PK

0.5 Module PEEK GF30® (Light Brown) 2 Start Precision Wormwheel 20° PA - Quality Grade 8e DIN 3974/58405
Ondrives Precision Gears and Gearboxes Part number PWG0.5-150-2PK Ondrives Precision Gears and Gearboxes Part number PWG0.5-150-2PK

Product specifications

MaterialPEEK GF 30
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Quality DIN 3974 DIN 584057e
Worm ProfileZi
Axial Module mx0.5
Pressure Angle20°
No. of Teeth [z]150
Centre Distance [a]42.5
Torque T₂ [Nm] n1 100 r/min7.6
Ref. Diameter [d2]75
Wheel Throat [da2]76
Tip Diameter [de2]76.5
Bore Diameter [di] H712
Hub Diameter [Dhub]45
Backlash (mm) jt.i (min)0.041
Backlash (mm) jt.e (max)0.108

Product specifications

MaterialPEEK GF 30
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Quality DIN 3974 DIN 584057e
Worm ProfileZi
Axial Module mx0.5
Pressure Angle20°
No. of Teeth [z]150
Centre Distance [a]42.5
Torque T₂ [Nm] n1 100 r/min7.6
Ref. Diameter [d2]75
Wheel Throat [da2]76
Tip Diameter [de2]76.5
Bore Diameter [di] H712
Hub Diameter [Dhub]45
Backlash (mm) jt.i (min)0.041
Backlash (mm) jt.e (max)0.108
