PWG0.5-240-2DL

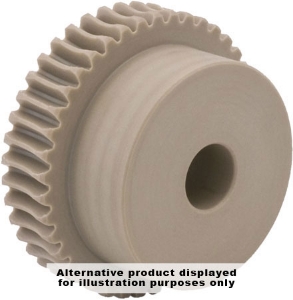

Ondrives Precision Gears and Gearboxes Part number PWG0.5-240-2DL

PWG0.5-240-2DL

0.5 Module Delrin POM (White) 2 Start Precision Wormwheel 20° PA - Quality Grade 8e DIN 3974/58405
Ondrives Precision Gears and Gearboxes Part number PWG0.5-240-2DL Ondrives Precision Gears and Gearboxes Part number PWG0.5-240-2DL

Product specifications

MaterialDelrin POM
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Quality DIN 3974 DIN 584057e
Worm ProfileZi
Axial Module mx0.5
Pressure Angle20°
No. of Teeth [z]240
Centre Distance [a]65
Torque T₂ [Nm] n1 100 r/min10.58
Ref. Diameter [d2]120
Wheel Throat [da2]121
Tip Diameter [de2]121.5
Bore Diameter [di] H716
Hub Diameter [Dhub]65
Backlash (mm) jt.i (min)0.045
Backlash (mm) jt.e (max)0.121

Product specifications

MaterialDelrin POM
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Quality DIN 3974 DIN 584057e
Worm ProfileZi
Axial Module mx0.5
Pressure Angle20°
No. of Teeth [z]240
Centre Distance [a]65
Torque T₂ [Nm] n1 100 r/min10.58
Ref. Diameter [d2]120
Wheel Throat [da2]121
Tip Diameter [de2]121.5
Bore Diameter [di] H716
Hub Diameter [Dhub]65
Backlash (mm) jt.i (min)0.045
Backlash (mm) jt.e (max)0.121
