PWG0.5-58-1DL

Ondrives Precision Gears and Gearboxes Part number PWG0.5-58-1DL

PWG0.5-58-1DL

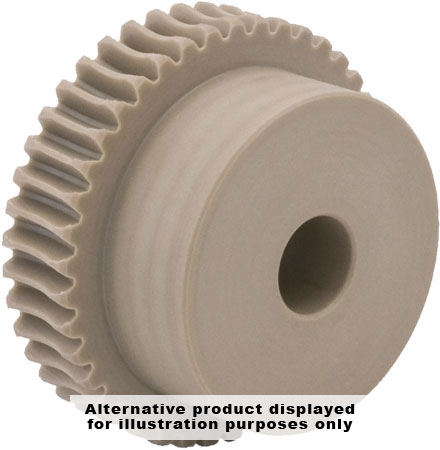

0.5 Module Delrin POM (White) 1 Start Precision Wormwheel 20° PA - Quality Grade 8e DIN 3974/58405
Ondrives Precision Gears and Gearboxes Part number PWG0.5-58-1DL Ondrives Precision Gears and Gearboxes Part number PWG0.5-58-1DL

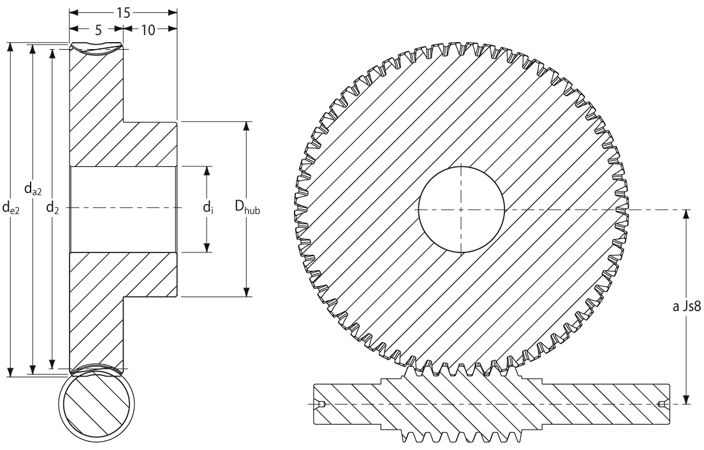

Product specifications

MaterialDelrin POM
Gear Tooth TypeWormwheel
No. of Starts worm [z1]1
Lead DirectionRight Hand
Quality DIN 3974 DIN 584057e
Worm ProfileZi
Axial Module mx0.5
Pressure Angle20°
No. of Teeth [z]58
Centre Distance [a]19.5
Torque T₂ [Nm] n1 100 r/min2.02
Ref. Diameter [d2]29
Wheel Throat [da2]30
Tip Diameter [de2]30.5
Bore Diameter [di] H78
Hub Diameter [Dhub]20
Backlash (mm) jt.i (min)0.040
Backlash (mm) jt.e (max)0.098

Product specifications

MaterialDelrin POM
Gear Tooth TypeWormwheel
No. of Starts worm [z1]1
Lead DirectionRight Hand
Quality DIN 3974 DIN 584057e
Worm ProfileZi
Axial Module mx0.5
Pressure Angle20°
No. of Teeth [z]58
Centre Distance [a]19.5
Torque T₂ [Nm] n1 100 r/min2.02
Ref. Diameter [d2]29
Wheel Throat [da2]30
Tip Diameter [de2]30.5
Bore Diameter [di] H78
Hub Diameter [Dhub]20
Backlash (mm) jt.i (min)0.040
Backlash (mm) jt.e (max)0.098
