PWG0.5-60-2PK

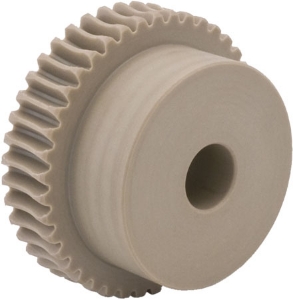

Ondrives Precision Gears and Gearboxes Part number PWG0.5-60-2PK

PWG0.5-60-2PK

0.5 Module PEEK GF30® (Light Brown) 2 Start Precision Wormwheel 20° PA - Quality Grade 8e DIN 3974/58405
Ondrives Precision Gears and Gearboxes Part number PWG0.5-60-2PK Ondrives Precision Gears and Gearboxes Part number PWG0.5-60-2PK

Product specifications

MaterialPEEK GF 30
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Quality DIN 3974 DIN 584057e
Worm ProfileZi
Axial Module mx0.5
Pressure Angle20°
No. of Teeth [z]60
Centre Distance [a]20
Torque T₂ [Nm] n1 100 r/min2.56
Ref. Diameter [d2]30
Wheel Throat [da2]31
Tip Diameter [de2]31.5
Bore Diameter [di] H78
Hub Diameter [Dhub]20
Backlash (mm) jt.i (min)0.040
Backlash (mm) jt.e (max)0.099

Product specifications

MaterialPEEK GF 30
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Quality DIN 3974 DIN 584057e
Worm ProfileZi
Axial Module mx0.5
Pressure Angle20°
No. of Teeth [z]60
Centre Distance [a]20
Torque T₂ [Nm] n1 100 r/min2.56
Ref. Diameter [d2]30
Wheel Throat [da2]31
Tip Diameter [de2]31.5
Bore Diameter [di] H78
Hub Diameter [Dhub]20
Backlash (mm) jt.i (min)0.040
Backlash (mm) jt.e (max)0.099
