PWG1.0-52-2PK

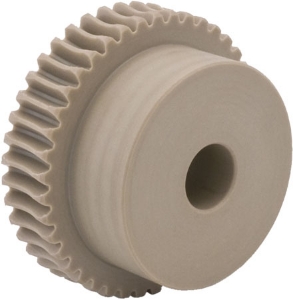

Ondrives Precision Gears and Gearboxes Part number PWG1.0-52-2PK

PWG1.0-52-2PK

1.0 Module PEEK GF30® (Light Brown) 2 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG1.0-52-2PK Ondrives Precision Gears and Gearboxes Part number PWG1.0-52-2PK

Product specifications

MaterialPEEK GF 30
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.0
Pressure Angle20°
No. of Teeth [z]52
Centre Distance [a]33.5
Torque T₂ [Nm] n1 100 r/min11.92
Ref. Diameter [d2]52
Wheel Throat [da2]54
Tip Diameter [de2]55
Bore Diameter [di] H710
Hub Diameter [Dhub]35
Backlash (mm) jt.i (min)0.048
Backlash (mm) jt.e (max)0.137

Product specifications

MaterialPEEK GF 30
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.0
Pressure Angle20°
No. of Teeth [z]52
Centre Distance [a]33.5
Torque T₂ [Nm] n1 100 r/min11.92
Ref. Diameter [d2]52
Wheel Throat [da2]54
Tip Diameter [de2]55
Bore Diameter [di] H710
Hub Diameter [Dhub]35
Backlash (mm) jt.i (min)0.048
Backlash (mm) jt.e (max)0.137
