PWG1.0-58-2PK

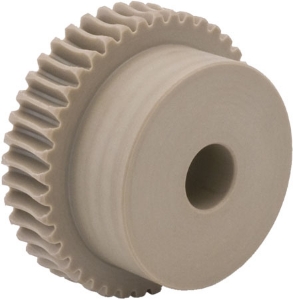

Ondrives Precision Gears and Gearboxes Part number PWG1.0-58-2PK

PWG1.0-58-2PK

1.0 Module PEEK GF30® (Light Brown) 2 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG1.0-58-2PK Ondrives Precision Gears and Gearboxes Part number PWG1.0-58-2PK

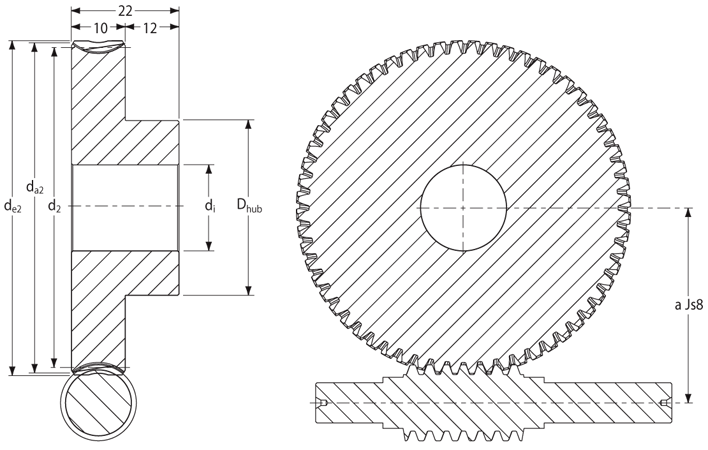

Product specifications

MaterialPEEK GF 30
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.0
Pressure Angle20°
No. of Teeth [z]58
Centre Distance [a]36.5
Torque T₂ [Nm] n1 100 r/min14.51
Ref. Diameter [d2]58
Wheel Throat [da2]60
Tip Diameter [de2]61
Bore Diameter [di] H710
Hub Diameter [Dhub]40
Backlash (mm) jt.i (min)0.048
Backlash (mm) jt.e (max)0.137

Product specifications

MaterialPEEK GF 30
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.0
Pressure Angle20°
No. of Teeth [z]58
Centre Distance [a]36.5
Torque T₂ [Nm] n1 100 r/min14.51
Ref. Diameter [d2]58
Wheel Throat [da2]60
Tip Diameter [de2]61
Bore Diameter [di] H710
Hub Diameter [Dhub]40
Backlash (mm) jt.i (min)0.048
Backlash (mm) jt.e (max)0.137
