PWG1.5-26-4PK

Ondrives Precision Gears and Gearboxes Part number PWG1.5-26-4PK

PWG1.5-26-4PK

1.5 Module PEEK GF30® (Light Brown) 4 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG1.5-26-4PK Ondrives Precision Gears and Gearboxes Part number PWG1.5-26-4PK

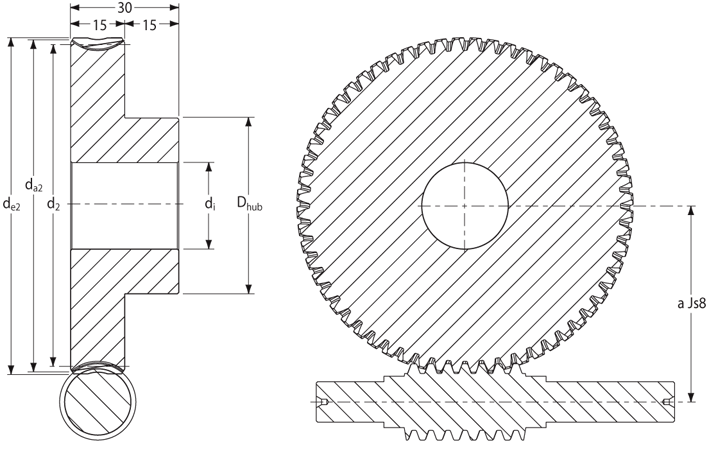

Product specifications

MaterialPEEK GF 30
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.5
Pressure Angle20°
No. of Teeth [z]26
Centre Distance [a]29.5
Torque T₂ [Nm] n1 100 r/min9.44
Ref. Diameter [d2]39
Wheel Throat [da2]42
Tip Diameter [de2]43.5
Bore Diameter [di] H78
Hub Diameter [Dhub]25
Backlash (mm) jt.i (min)0.042
Backlash (mm) jt.e (max)0.119

Product specifications

MaterialPEEK GF 30
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.5
Pressure Angle20°
No. of Teeth [z]26
Centre Distance [a]29.5
Torque T₂ [Nm] n1 100 r/min9.44
Ref. Diameter [d2]39
Wheel Throat [da2]42
Tip Diameter [de2]43.5
Bore Diameter [di] H78
Hub Diameter [Dhub]25
Backlash (mm) jt.i (min)0.042
Backlash (mm) jt.e (max)0.119
