PWG1.5-40-4DL

Ondrives Precision Gears and Gearboxes Part number PWG1.5-40-4DL

PWG1.5-40-4DL

1.5 Module Delrin POM (White) 4 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG1.5-40-4DL Ondrives Precision Gears and Gearboxes Part number PWG1.5-40-4DL

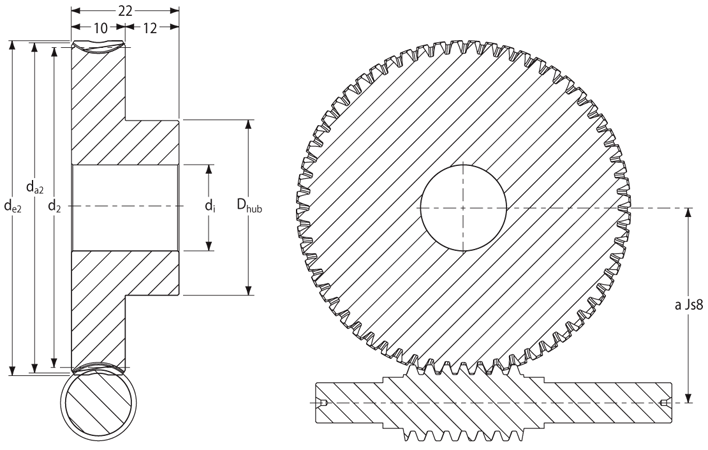

Product specifications

MaterialDelrin POM
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.5
Pressure Angle20°
No. of Teeth [z]40
Centre Distance [a]40
Torque T₂ [Nm] n1 100 r/min18.02
Ref. Diameter [d2]60
Wheel Throat [da2]63
Tip Diameter [de2]64.5
Bore Diameter [di] H712
Hub Diameter [Dhub]45
Backlash (mm) jt.i (min)0.050
Backlash (mm) jt.e (max)0.142

Product specifications

MaterialDelrin POM
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.5
Pressure Angle20°
No. of Teeth [z]40
Centre Distance [a]40
Torque T₂ [Nm] n1 100 r/min18.02
Ref. Diameter [d2]60
Wheel Throat [da2]63
Tip Diameter [de2]64.5
Bore Diameter [di] H712
Hub Diameter [Dhub]45
Backlash (mm) jt.i (min)0.050
Backlash (mm) jt.e (max)0.142
