PWG2.0-18-4PK

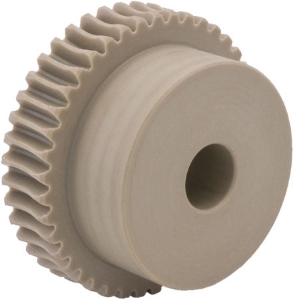

Ondrives Precision Gears and Gearboxes Part number PWG2.0-18-4PK

PWG2.0-18-4PK

2.0 Module PEEK GF30® (Light Brown) 4 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG2.0-18-4PK Ondrives Precision Gears and Gearboxes Part number PWG2.0-18-4PK

Product specifications

MaterialPEEK GF 30
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.0
Pressure Angle20°
No. of Teeth [z]18
Centre Distance [a]30.5
Torque T₂ [Nm] n1 100 r/min10.29
Ref. Diameter [d2]36
Wheel Throat [da2]40
Tip Diameter [de2]42
Bore Diameter [di] H710
Hub Diameter [Dhub]25
Backlash (mm) jt.i (min)0.040
Backlash (mm) jt.e (max)0.122

Product specifications

MaterialPEEK GF 30
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.0
Pressure Angle20°
No. of Teeth [z]18
Centre Distance [a]30.5
Torque T₂ [Nm] n1 100 r/min10.29
Ref. Diameter [d2]36
Wheel Throat [da2]40
Tip Diameter [de2]42
Bore Diameter [di] H710
Hub Diameter [Dhub]25
Backlash (mm) jt.i (min)0.040
Backlash (mm) jt.e (max)0.122
