PWG2.0-25-1

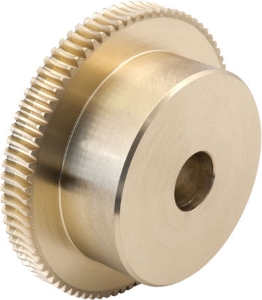

Ondrives Precision Gears and Gearboxes Part number PWG2.0-25-1

PWG2.0-25-1

2.0 Module Bronze CA104 1 Start Precision Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG2.0-25-1 Ondrives Precision Gears and Gearboxes Part number PWG2.0-25-1

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.0
Pressure Angle20°
No. of Teeth [z]25
Centre Distance [a]37.5
Torque T₂ [Nm] n1 100 r/min30.24
Ref. Diameter [d2]50
Wheel Throat [da2]54
Tip Diameter [de2]56
Bore Diameter [di] H712
Hub Diameter [Dhub]35
Backlash (mm) jt.i (min)0.038
Backlash (mm) jt.e (max)0.117
