PWG2.0-28-1DL

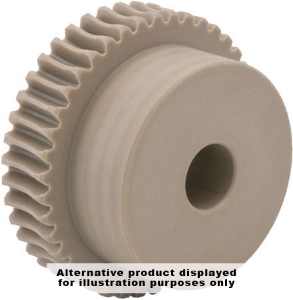

Ondrives Precision Gears and Gearboxes Part number PWG2.0-28-1DL

PWG2.0-28-1DL

2.0 Module Delrin POM (White) 1 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG2.0-28-1DL Ondrives Precision Gears and Gearboxes Part number PWG2.0-28-1DL

Product specifications

MaterialDelrin POM
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.0
Pressure Angle20°
No. of Teeth [z]28
Centre Distance [a]40.5
Torque T₂ [Nm] n1 100 r/min18.54
Ref. Diameter [d2]56
Wheel Throat [da2]60
Tip Diameter [de2]62
Bore Diameter [di] H712
Hub Diameter [Dhub]35
Backlash (mm) jt.i (min)0.048
Backlash (mm) jt.e (max)0.137

Product specifications

MaterialDelrin POM
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.0
Pressure Angle20°
No. of Teeth [z]28
Centre Distance [a]40.5
Torque T₂ [Nm] n1 100 r/min18.54
Ref. Diameter [d2]56
Wheel Throat [da2]60
Tip Diameter [de2]62
Bore Diameter [di] H712
Hub Diameter [Dhub]35
Backlash (mm) jt.i (min)0.048
Backlash (mm) jt.e (max)0.137
