PWG2.0-38-2DL

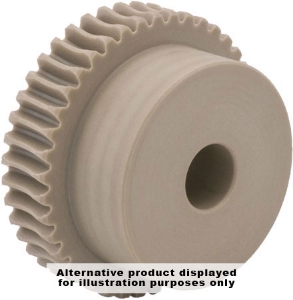

Ondrives Precision Gears and Gearboxes Part number PWG2.0-38-2DL

PWG2.0-38-2DL

2.0 Module Delrin POM (White) 2 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG2.0-38-2DL Ondrives Precision Gears and Gearboxes Part number PWG2.0-38-2DL

Product specifications

MaterialDelrin POM
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.0
Pressure Angle20°
No. of Teeth [z]38
Centre Distance [a]50.5
Torque T₂ [Nm] n1 100 r/min32.07
Ref. Diameter [d2]76
Wheel Throat [da2]80
Tip Diameter [de2]82
Bore Diameter [di] H714
Hub Diameter [Dhub]50
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.141

Product specifications

MaterialDelrin POM
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.0
Pressure Angle20°
No. of Teeth [z]38
Centre Distance [a]50.5
Torque T₂ [Nm] n1 100 r/min32.07
Ref. Diameter [d2]76
Wheel Throat [da2]80
Tip Diameter [de2]82
Bore Diameter [di] H714
Hub Diameter [Dhub]50
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.141
