PWG2.0-62-3

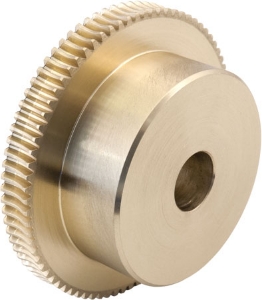

Ondrives Precision Gears and Gearboxes Part number PWG2.0-62-3

PWG2.0-62-3

2.0 Module Bronze CA104 3 Start Precision Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG2.0-62-3 Ondrives Precision Gears and Gearboxes Part number PWG2.0-62-3

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.0
Pressure Angle20°
No. of Teeth [z]62
Centre Distance [a]74.5
Torque T₂ [Nm] n1 100 r/min171.3
Ref. Diameter [d2]124
Wheel Throat [da2]128
Tip Diameter [de2]130
Bore Diameter [di] H716
Hub Diameter [Dhub]65
Backlash (mm) jt.i (min)0.047
Backlash (mm) jt.e (max)0.143

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.0
Pressure Angle20°
No. of Teeth [z]62
Centre Distance [a]74.5
Torque T₂ [Nm] n1 100 r/min171.3
Ref. Diameter [d2]124
Wheel Throat [da2]128
Tip Diameter [de2]130
Bore Diameter [di] H716
Hub Diameter [Dhub]65
Backlash (mm) jt.i (min)0.047
Backlash (mm) jt.e (max)0.143
