PWG2.5-19-2CI

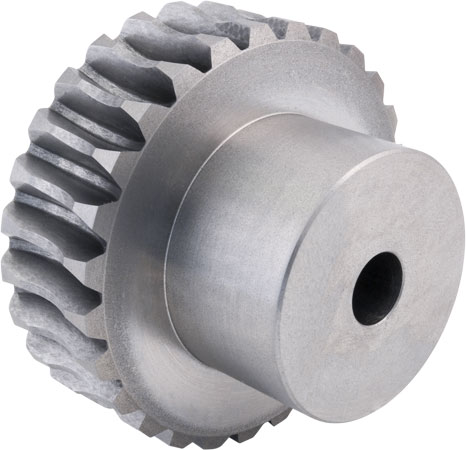

Ondrives Precision Gears and Gearboxes Part number PWG2.5-19-2CI

PWG2.5-19-2CI

2.5 Module Cast Iron GG25 2 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG2.5-19-2CI Ondrives Precision Gears and Gearboxes Part number PWG2.5-19-2CI

Product specifications

MaterialCast Iron GG25
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.5
Pressure Angle20°
No. of Teeth [z]19
Centre Distance [a]41.25
Torque T₂ [Nm] n1 100 r/min15.27
Ref. Diameter [d2]47.5
Wheel Throat [da2]52.5
Tip Diameter [de2]55
Bore Diameter [di] H710
Hub Diameter [Dhub]30
Backlash (mm) jt.i (min)0.038
Backlash (mm) jt.e (max)0.117
