PWG2.5-28-1CI

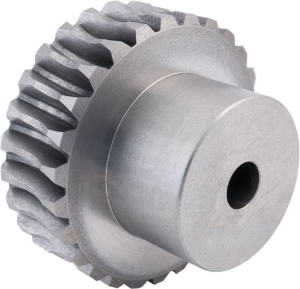

Ondrives Precision Gears and Gearboxes Part number PWG2.5-28-1CI

PWG2.5-28-1CI

2.5 Module Cast Iron GG25 1 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG2.5-28-1CI Ondrives Precision Gears and Gearboxes Part number PWG2.5-28-1CI

Product specifications

MaterialCast Iron GG25
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.5
Pressure Angle20°
No. of Teeth [z]28
Centre Distance [a]52.5
Torque T₂ [Nm] n1 100 r/min32.97
Ref. Diameter [d2]70
Wheel Throat [da2]75
Tip Diameter [de2]77.5
Bore Diameter [di] H712
Hub Diameter [Dhub]45
Backlash (mm) jt.i (min)0.045
Backlash (mm) jt.e (max)0.139

Product specifications

MaterialCast Iron GG25
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.5
Pressure Angle20°
No. of Teeth [z]28
Centre Distance [a]52.5
Torque T₂ [Nm] n1 100 r/min32.97
Ref. Diameter [d2]70
Wheel Throat [da2]75
Tip Diameter [de2]77.5
Bore Diameter [di] H712
Hub Diameter [Dhub]45
Backlash (mm) jt.i (min)0.045
Backlash (mm) jt.e (max)0.139
