PWG2.5-42-2CI

Ondrives Precision Gears and Gearboxes Part number PWG2.5-42-2CI

PWG2.5-42-2CI

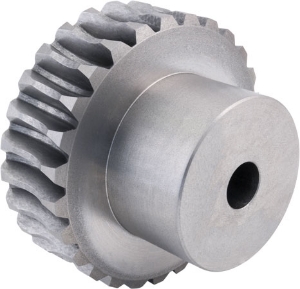

2.5 Module Cast Iron GG25 2 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG2.5-42-2CI Ondrives Precision Gears and Gearboxes Part number PWG2.5-42-2CI

Product specifications

MaterialCast Iron GG25
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.5
Normal Module mn2.5
Pressure Angle20°
No. of Teeth [z]42
Centre Distance [a]70
Torque T₂ [Nm] n1 100 r/min69.44
Ref. Diameter [d2]105
Wheel Throat [da2]110
Tip Diameter [de2]112.5
Bore Diameter [di] H716
Hub Diameter [Dhub]65
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.140

Product specifications

MaterialCast Iron GG25
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.5
Normal Module mn2.5
Pressure Angle20°
No. of Teeth [z]42
Centre Distance [a]70
Torque T₂ [Nm] n1 100 r/min69.44
Ref. Diameter [d2]105
Wheel Throat [da2]110
Tip Diameter [de2]112.5
Bore Diameter [di] H716
Hub Diameter [Dhub]65
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.140
