PWG2.5-45-1CI

Ondrives Precision Gears and Gearboxes Part number PWG2.5-45-1CI

PWG2.5-45-1CI

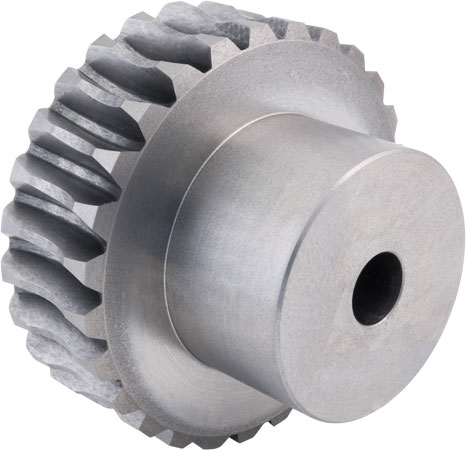

2.5 Module Cast Iron GG25 1 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG2.5-45-1CI Ondrives Precision Gears and Gearboxes Part number PWG2.5-45-1CI

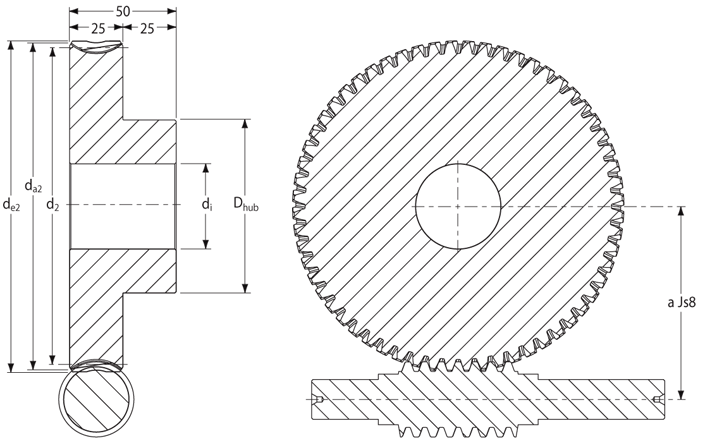

Product specifications

MaterialCast Iron GG25
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.5
Normal Module mn2.5
Pressure Angle20°
No. of Teeth [z]45
Centre Distance [a]73.75
Torque T₂ [Nm] n1 100 r/min81.27
Ref. Diameter [d2]112.5
Wheel Throat [da2]117.5
Tip Diameter [de2]120
Bore Diameter [di] H716
Hub Diameter [Dhub]65
Backlash (mm) jt.i (min)0.045
Backlash (mm) jt.e (max)0.139

Product specifications

MaterialCast Iron GG25
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx2.5
Normal Module mn2.5
Pressure Angle20°
No. of Teeth [z]45
Centre Distance [a]73.75
Torque T₂ [Nm] n1 100 r/min81.27
Ref. Diameter [d2]112.5
Wheel Throat [da2]117.5
Tip Diameter [de2]120
Bore Diameter [di] H716
Hub Diameter [Dhub]65
Backlash (mm) jt.i (min)0.045
Backlash (mm) jt.e (max)0.139
