PWG3.0-16-4CI

Ondrives Precision Gears and Gearboxes Part number PWG3.0-16-4CI

PWG3.0-16-4CI

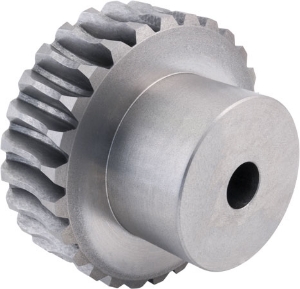

3.0 Module Cast Iron GG25 4 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG3.0-16-4CI Ondrives Precision Gears and Gearboxes Part number PWG3.0-16-4CI

Product specifications

MaterialCast Iron GG25
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx3.0
Pressure Angle20°
No. of Teeth [z]16
Centre Distance [a]44
Torque T₂ [Nm] n1 100 r/min18.12
Ref. Diameter [d2]48
Wheel Throat [da2]54
Tip Diameter [de2]57
Bore Diameter [di] H712
Hub Diameter [Dhub]35
Backlash (mm) jt.i (min)0.048
Backlash (mm) jt.e (max)0.140

Product specifications

MaterialCast Iron GG25
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx3.0
Pressure Angle20°
No. of Teeth [z]16
Centre Distance [a]44
Torque T₂ [Nm] n1 100 r/min18.12
Ref. Diameter [d2]48
Wheel Throat [da2]54
Tip Diameter [de2]57
Bore Diameter [di] H712
Hub Diameter [Dhub]35
Backlash (mm) jt.i (min)0.048
Backlash (mm) jt.e (max)0.140
