PWG3.0-21-1CI

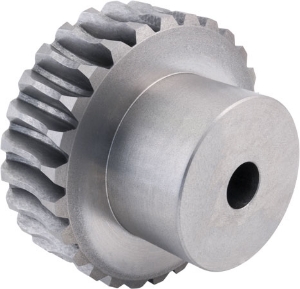

Ondrives Precision Gears and Gearboxes Part number PWG3.0-21-1CI

PWG3.0-21-1CI

3.0 Module Cast Iron GG25 1 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG3.0-21-1CI Ondrives Precision Gears and Gearboxes Part number PWG3.0-21-1CI

Product specifications

MaterialCast Iron GG25
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx3.0
Pressure Angle20°
No. of Teeth [z]21
Centre Distance [a]51.5
Torque T₂ [Nm] n1 100 r/min28.73
Ref. Diameter [d2]63
Wheel Throat [da2]69
Tip Diameter [de2]72
Bore Diameter [di] H714
Hub Diameter [Dhub]50
Backlash (mm) jt.i (min)0.045
Backlash (mm) jt.e (max)0.139

Product specifications

MaterialCast Iron GG25
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx3.0
Pressure Angle20°
No. of Teeth [z]21
Centre Distance [a]51.5
Torque T₂ [Nm] n1 100 r/min28.73
Ref. Diameter [d2]63
Wheel Throat [da2]69
Tip Diameter [de2]72
Bore Diameter [di] H714
Hub Diameter [Dhub]50
Backlash (mm) jt.i (min)0.045
Backlash (mm) jt.e (max)0.139
