PWG3.0-26-1

Ondrives Precision Gears and Gearboxes Part number PWG3.0-26-1

PWG3.0-26-1

3.0 Module Bronze CA104 1 Start Precision Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG3.0-26-1 Ondrives Precision Gears and Gearboxes Part number PWG3.0-26-1

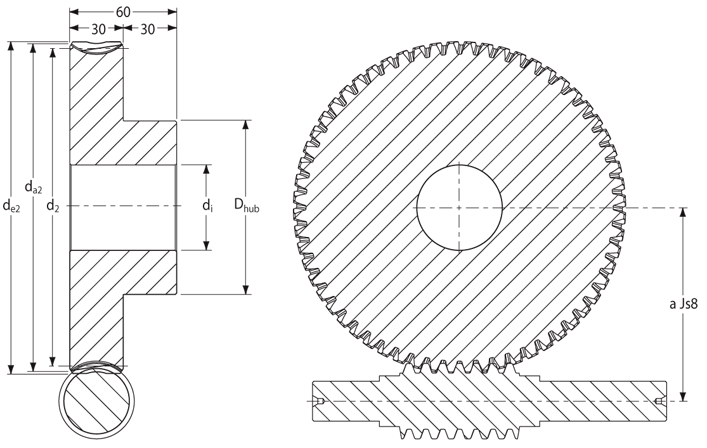

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx3.0
Pressure Angle20°
No. of Teeth [z]26
Centre Distance [a]59
Torque T₂ [Nm] n1 100 r/min94.28
Ref. Diameter [d2]78
Wheel Throat [da2]84
Tip Diameter [de2]87
Bore Diameter [di] H714
Hub Diameter [Dhub]50
Backlash (mm) jt.i (min)0.045
Backlash (mm) jt.e (max)0.139

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx3.0
Pressure Angle20°
No. of Teeth [z]26
Centre Distance [a]59
Torque T₂ [Nm] n1 100 r/min94.28
Ref. Diameter [d2]78
Wheel Throat [da2]84
Tip Diameter [de2]87
Bore Diameter [di] H714
Hub Diameter [Dhub]50
Backlash (mm) jt.i (min)0.045
Backlash (mm) jt.e (max)0.139
