PWG3.0-28-2PK

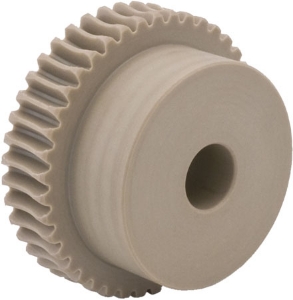

Ondrives Precision Gears and Gearboxes Part number PWG3.0-28-2PK

PWG3.0-28-2PK

3.0 Module PEEK GF30® (Light Brown) 2 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG3.0-28-2PK Ondrives Precision Gears and Gearboxes Part number PWG3.0-28-2PK

Product specifications

MaterialPEEK GF 30
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx3.0
Pressure Angle20°
No. of Teeth [z]28
Centre Distance [a]62
Torque T₂ [Nm] n1 100 r/min64.15
Ref. Diameter [d2]84
Wheel Throat [da2]90
Tip Diameter [de2]93
Bore Diameter [di] H714
Hub Diameter [Dhub]50
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.140

Product specifications

MaterialPEEK GF 30
Quality DIN 3974 DIN39678e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx3.0
Pressure Angle20°
No. of Teeth [z]28
Centre Distance [a]62
Torque T₂ [Nm] n1 100 r/min64.15
Ref. Diameter [d2]84
Wheel Throat [da2]90
Tip Diameter [de2]93
Bore Diameter [di] H714
Hub Diameter [Dhub]50
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.140
