PWG3.0-29-3CI

Ondrives Precision Gears and Gearboxes Part number PWG3.0-29-3CI

PWG3.0-29-3CI

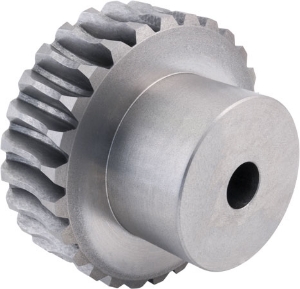

3.0 Module Cast Iron GG25 3 Start Precision Wormwheel 20° PA - Quality Grade 8e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number PWG3.0-29-3CI Ondrives Precision Gears and Gearboxes Part number PWG3.0-29-3CI

Product specifications

MaterialCast Iron GG25
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx3.0
Pressure Angle20°
No. of Teeth [z]29
Centre Distance [a]63.5
Torque T₂ [Nm] n1 100 r/min54.86
Ref. Diameter [d2]87
Wheel Throat [da2]93
Tip Diameter [de2]96
Bore Diameter [di] H716
Hub Diameter [Dhub]65
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.142

Product specifications

MaterialCast Iron GG25
Quality DIN 3974 DIN39677e25
Gear Tooth TypeWormwheel
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx3.0
Pressure Angle20°
No. of Teeth [z]29
Centre Distance [a]63.5
Torque T₂ [Nm] n1 100 r/min54.86
Ref. Diameter [d2]87
Wheel Throat [da2]93
Tip Diameter [de2]96
Bore Diameter [di] H716
Hub Diameter [Dhub]65
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.142
