BLHB20-2

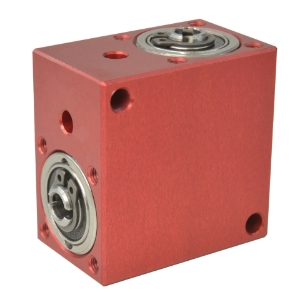

Spiral Bevel Gearbox bore input and output compact design made by Ondrives Precision Gears and Gearboxes

BLHB20-2

Spiral Bevel Gearbox Right Angle Bore Input 1 Bore Output, 5mm shafts, 0.53Nm-1.41Nm output torque, ratio 2:1
Spiral Bevel Gearbox bore input and output compact design made by Ondrives Precision Gears and Gearboxes Spiral Bevel Gearbox bore input and output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Spiral Bevel Gearbox bore input and output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Spiral Bevel gearbox made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Spiral Bevel gearbox made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]2:1
Output Torque T₂n [Nm]0.70
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]0.12
Max. Input Radial Load Fr1 N10
Max. Output Radial Load Fr2 N10
Max. Output Axial Load Fa2 N5
Lubrication GreaseShell Gadus S2 V220AD 2

Product specifications

Gear Ratio [i=]2:1
Output Torque T₂n [Nm]0.70
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]0.12
Max. Input Radial Load Fr1 N10
Max. Output Radial Load Fr2 N10
Max. Output Axial Load Fa2 N5
Lubrication GreaseShell Gadus S2 V220AD 2
