BLHB50-2A

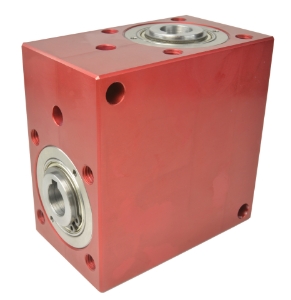

Spiral Bevel Gearbox bore input and output compact design made by Ondrives Precision Gears and Gearboxes

BLHB50-2A

Spiral Bevel Gearbox Right Angle Bore Input 1 Bore Output, ≤30' backlash, 15mm shafts, 7.70Nm-20.00Nm output torque, ratio 2:1
Spiral Bevel Gearbox bore input and output compact design made by Ondrives Precision Gears and Gearboxes Spiral Bevel Gearbox bore input and output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Spiral Bevel Gearbox bore input and output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Spiral Bevel gearbox made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Spiral Bevel gearbox made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]2:1
Output Torque T₂n [Nm]10.20
Output Backlash j≤0.5°
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]2.2
Max. Input Radial Load Fr1 N200
Max. Output Radial Load Fr2 N200
Max. Output Axial Load Fa2 N100
Lubrication GreaseShell Gadus S2 V220AD 2

Product specifications

Gear Ratio [i=]2:1
Output Torque T₂n [Nm]10.20
Output Backlash j≤0.5°
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]2.2
Max. Input Radial Load Fr1 N200
Max. Output Radial Load Fr2 N200
Max. Output Axial Load Fa2 N100
Lubrication GreaseShell Gadus S2 V220AD 2
