BLN30-18

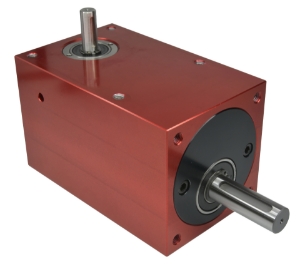

Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes

BLN30-18

High Ratio Spiral Bevel Gearbox, 10mm output shaft, 8mm input shaft, 6.1Nm-15.0Nm output torque, ratio 18:1
Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for gearbox made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for gearbox made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]18:1
Output Torque T₂n [Nm]7.60
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]1
Lubrication GreaseShell Gadus S2 V220AD 2

Product specifications

Gear Ratio [i=]18:1
Output Torque T₂n [Nm]7.60
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]1
Lubrication GreaseShell Gadus S2 V220AD 2
